Name: ViscoScope® VA-300 Maintenance-free inline process viscometer for real-time viscosity measurement
Brand: Fluid.iO
SKU: G-01-02
Price: on request EUR

Descripción del producto

The ViscoScope® sensors are made of high-quality, first-class stainless steel and impress with their intelligent, robust design.

Datos técnicos

Propiedades

Clase de protección: IP65

Material: 1.4571 / 1.4404 (316Ti / 316L)

Temperatura de proceso: -40°C … +450°C

Presión del proceso: Vakuum ... 450 bar

Conexiones de proceso: DIN Flansch | ANSI Flansch | NPT | Varivent® | Tri-Clamp

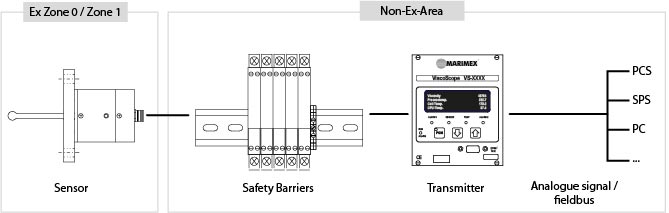

Longitud del cable sensor - transmisor: max. 1.000m

velocidad máx. de flujo: 10 m / sec

Aprobación Ex: (optional) II 1/2G Ex ia IIC T6...T3 Ga/Gb

Material (opcional): Hastelloy C22, Duplex 2205, Teflon

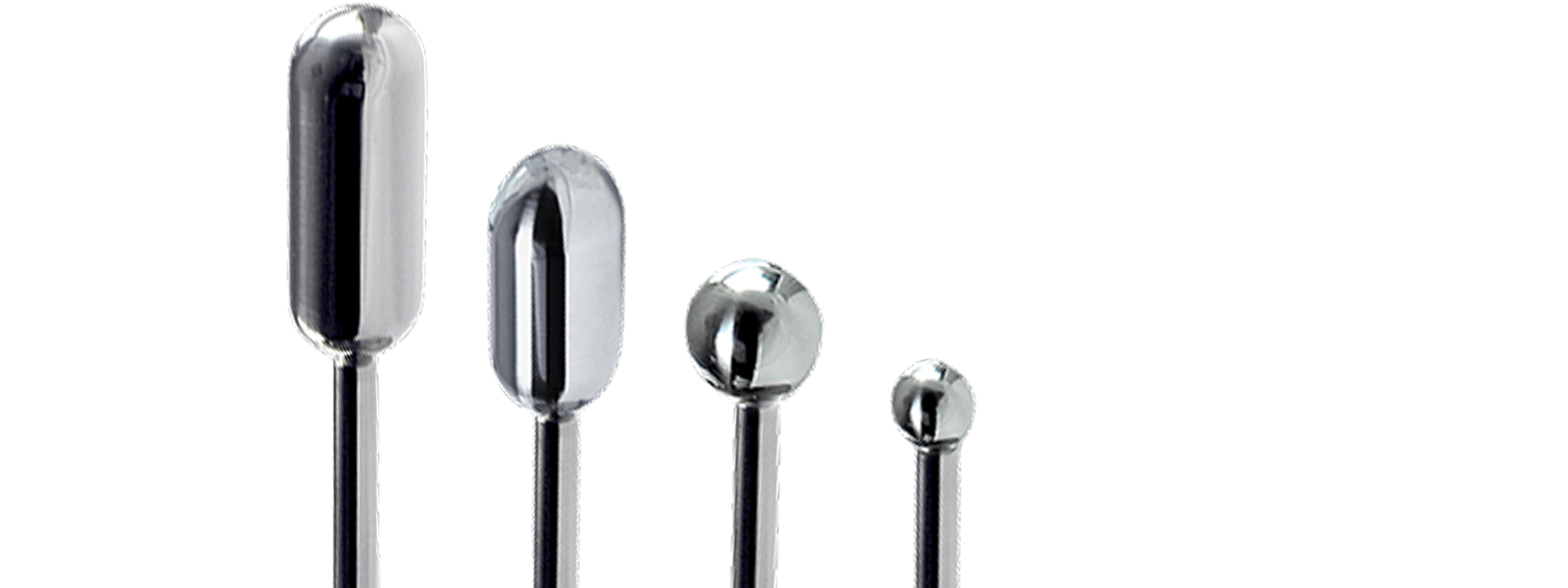

Tipos de sensores

cilindro grande: VA-300L

cilindro pequeño: VA-300M

Esfera: VA-300H

esfera pequeña: VA-300X

Rango de medición

VA-300L: 0,1 - 2.500 mPa·s x g/cm³

VA-300M: 1 - 25.000 mPa·s x g/cm³

VA-300H: 100 - 250.000 mPa·s x g/cm³

VA-300X: 100 - 2.500.000 mPa·s x g/cm³

Dimensiones de la sonda

VA-300L: Ø 32 x 190 mm

VA-300M: Ø 32 x 165 mm

VA-300H: Ø 32 x 130 mm

VA-300X: Ø 19 x 115 mm

ViscoScope® VA-300 Configurar

VA-300 - [ 1 ] - [ 2 ] - [ 3 ] - [ 4 ] - [ 5 ] - [ 6 ]

1 Viscosity

L : 0,1...2.500 mPas* g/cm³
M : 1...25.000 mPas* g/cm³
H : 0,1...250 Pas* g/cm³
X : 100...2.500 Pas* g/cm³
S : application specific

2 Temperature

LT : -40…130 °C
ST : -40…300 °C
HT : -40…450 °C

3 Process-Connection

DIN : Flansch gemäß EN 1092-1, bitte Abmessungen angeben
ANSI : Flansch gemäß ASME B16.5, bitte Abmessungen angeben
N : NPT
V : Varivent®
T : Tri-Clamp

4 Material

VA : Edelstahl (1.4571/1.4404 316Ti/316L)
DU : Duplex SAF2205 (1.4462)
HC : Hastelloy C22 (2.4602)
FPC : Fluorpolymer-Coating (Antihaft Beschichtung)

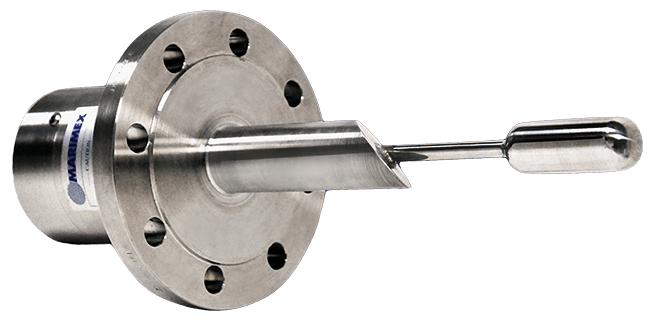

5 Non-active-Extension

NaV : with NaV
0 : without NaV

6 Ex-Bereich

Ex : II 1/2G Ex ia IIC T6…T3 Ga/Gb
0 : ohne Ex-Zulassung

Más información del producto

Each ViscoScope® viscometer has a Pt100 integrated in the sensor. The ViscoScope VA-300 sensors allow a large number of variants and are therefore manufactured to order. This ensures optimal installation in new and existing plants. Other special features include CIP / SIP capability, surface Ra < 0.2 µm, installation without dead space or intrinsically safe installation.

The ViscoScope® sensors are made of high-quality, first-class stainless steel and impress with their intelligent, robust design. All parts in contact with the process are completely welded. Moving parts do not wear out and there are no leaks that damage the inside of the sensor housing. Each ViscoScope® viscometer has a Pt100 integrated into the sensor. The ViscoScope VA-300 sensors allow a wide range of variants and are therefore manufactured to order. This ensures optimal installation in new and existing plants. Further special features are the CIP / SIP capability, surface Ra <0.2 µm, dead space free installation or intrinsically safe installation.

The ViscoScope inline sensor VA-300 requires no maintenance and is designed for accurate, reproducible and reliable measurement of the dynamic viscosity of liquids in real-time. A Pt100 integrated into the probe simultaneously measures the process temperature.
The probe of the ViscoScope® sensor is fully welded to ensure that no moving parts come into contact with the fluid being measured. Electric coils drive the probe at its resonance frequency and stimulate it to an oscillating torsion at a small amplitude. A fast closed-loop PID controller keeps the amplitude constant. Thus the higher the viscosity, the higher the voltage required. This can be used to measure the dynamic viscosity in mPa·s x g/cm3 (η x ρ). The low amplitude at the resonance frequency prevents material fatigue, which could otherwise cause components to move or wear. It also ideal for ensuring that the instrument has a long, reliable and maintenance-free service life.

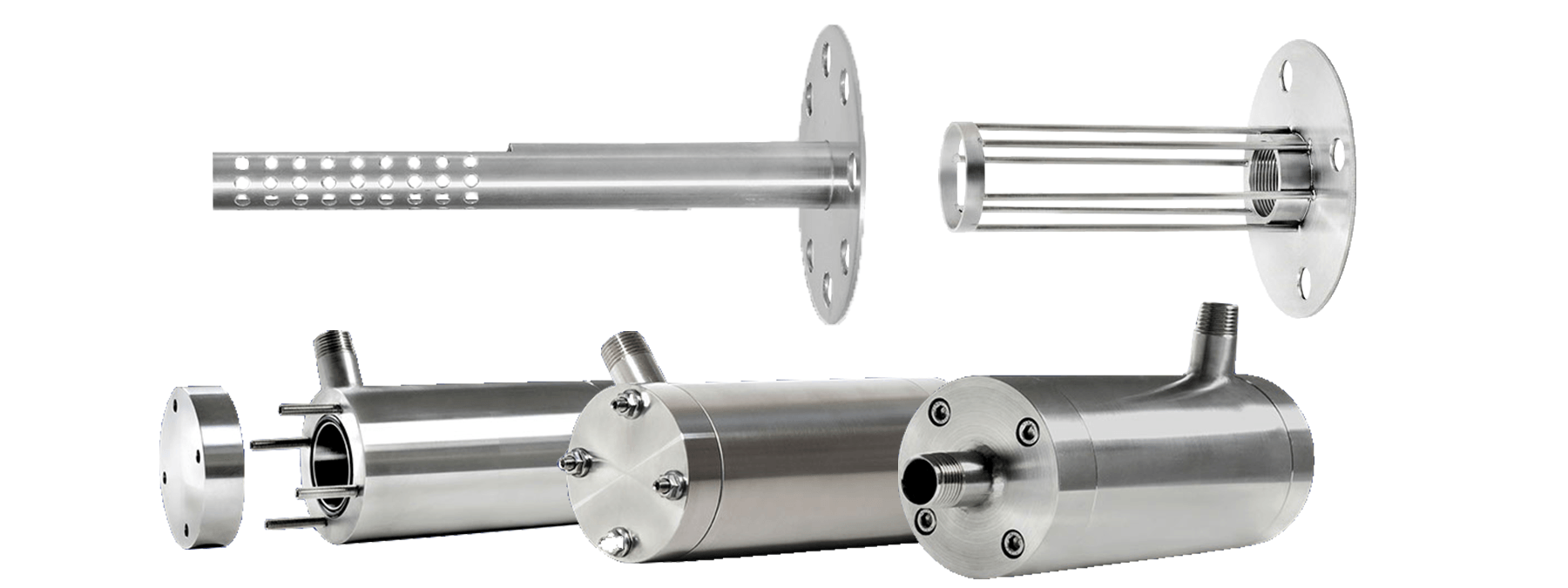

The ViscoScope® VA-300 sensor is manufactured to order and therefore available in a wide range of versions that optimize installation in new or existing plants. This variety of sensor designs often allows them to be installed with little or no modification to the potential installation site. The sensor can be installed in any position but it should be selected carefully in order to ensure cost-efficient measurements.

The ViscoScope® VA-300 sensor is a versatile instrument for many industrial applications:

vacuum or high pressure
very low or high temperatures
in secure areas or areas with potentially explosive atmospheres
CIP / SIP compliant or with no dead spaces

In continuous processes, viscosity is monitored permanently. This permits timely adjustment of the system or optimum dosing. Batch applications are often reactive processes, in which the viscosity curve and achieving a specified target viscosity define the optimum point for stopping the process.
However, the degree of homogenization, concentration, molecular weight distribution, coating thickness, lubrication performance and phase separation can also be inferred from the measurement signal – the potential uses are simply limitless. Marimex® has already implemented apparently impossible applications and successfully put them into operation. Most liquids are non-Newtonian so relative viscosity is the relevant measurement in processes. The ViscoScope® system is factory- calibrated using certified Newtonian calibration oils. This multipoint calibration allows the user to obtain reproducible results, e.g. when several systems are used in the same applications, after repair or relocation to a different plant. In order to compare the process viscosity with a known laboratory viscosity, it is necessary to calculate a correlation empirically.
