Descripción del producto
Maximum flexibility for an optimal choice of measuring instrument: The VS-D250 transmitter is compatible with all ViscoScope® sensors of the types VA-100 and VA-300.
Datos técnicos
Propiedades
- Zócalo de la tarjeta de salida
- 2
- Entrada externa
- 0/4…20 mA | 0/2…10 V DC
- Fuente de alimentación
- 24V DC, 12 W

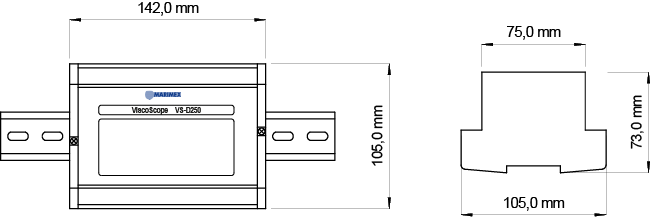

- Dimensiones
- 142 x 106 x 73 mm (L x B x H)
- Frontal
- RS232, MODBUS RTU (Standard)
Visualización y funcionamiento
- Líneas
- 4
- Páginas
- 2
- Juego de caracteres
- alphanumerisch
- Botones
- 3 (front)
Alarmas
- función del sistema
- diagnóstico de sensores
- Temperatura de la bobina
- 2 LED configurables
salidas opcionales
- 0/4…20mA | 0/2…10V CC (activa)
- RS232 | RS485
- 2 relés SPDT: RS232 | RS485
Filtro
- Media móvil (200 valores medidos)
VS-D250 Configurar
Su configuración
- Designación básica
- VS-D250
- Ausgänge
- Spannungsversorgung
- Gehäuse
Más información del producto
Viscosity ranges are covered by the internal resolution of 16 bits over four decades (e.g. 1 - 10,000 or 10 - 100,000 etc.). Even for measurements with very small viscosity difference (example: milk and whey), the transmitters work precisely. Both transmitters VS-4450 and VS-D250 are equipped with a freely configurable display. The transmission of measurement and diagnostic data to a process control system is done via industry-standard analogue or digital interfaces. The VS-4450 is optionally available with 2 SPDT relays that enable time-proportional control or alarms. The model VS-D250 is designed for DIN rail mounting.

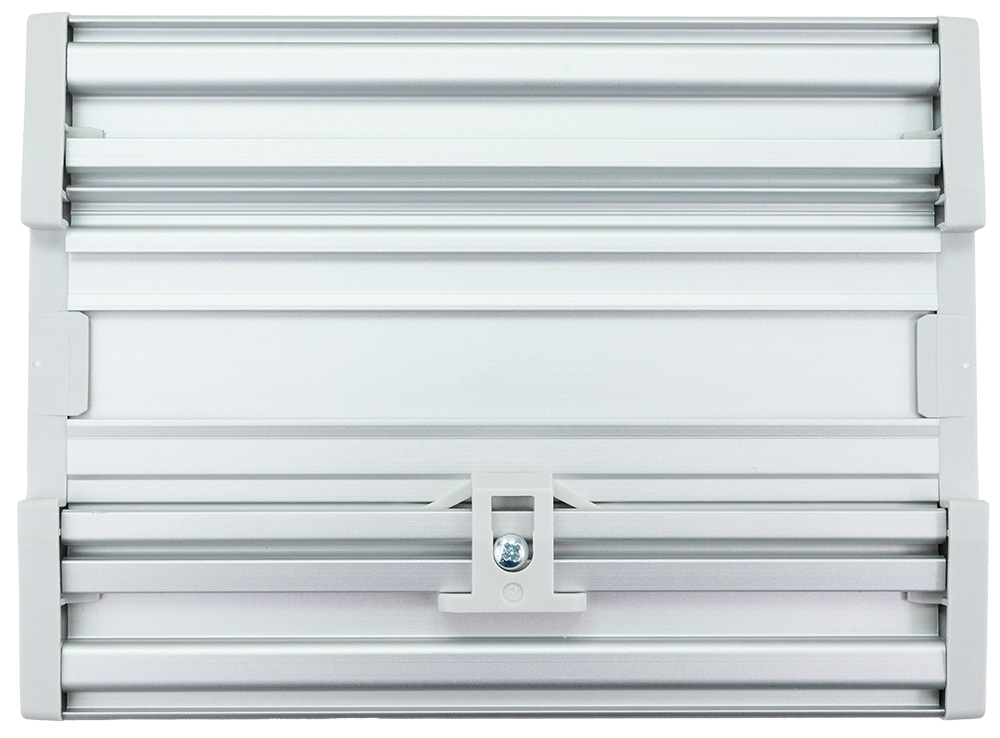

Model VS-D250 is designed for DIN rail mounting. With an adapter, wall mounting as well as installation in a wall or Ex d enclosure is possible.
