Name: EP 24V Plate Electrode as Leak Detector (conductive)
Brand: Fluid.iO

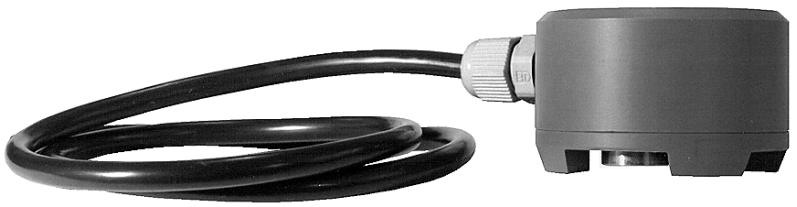

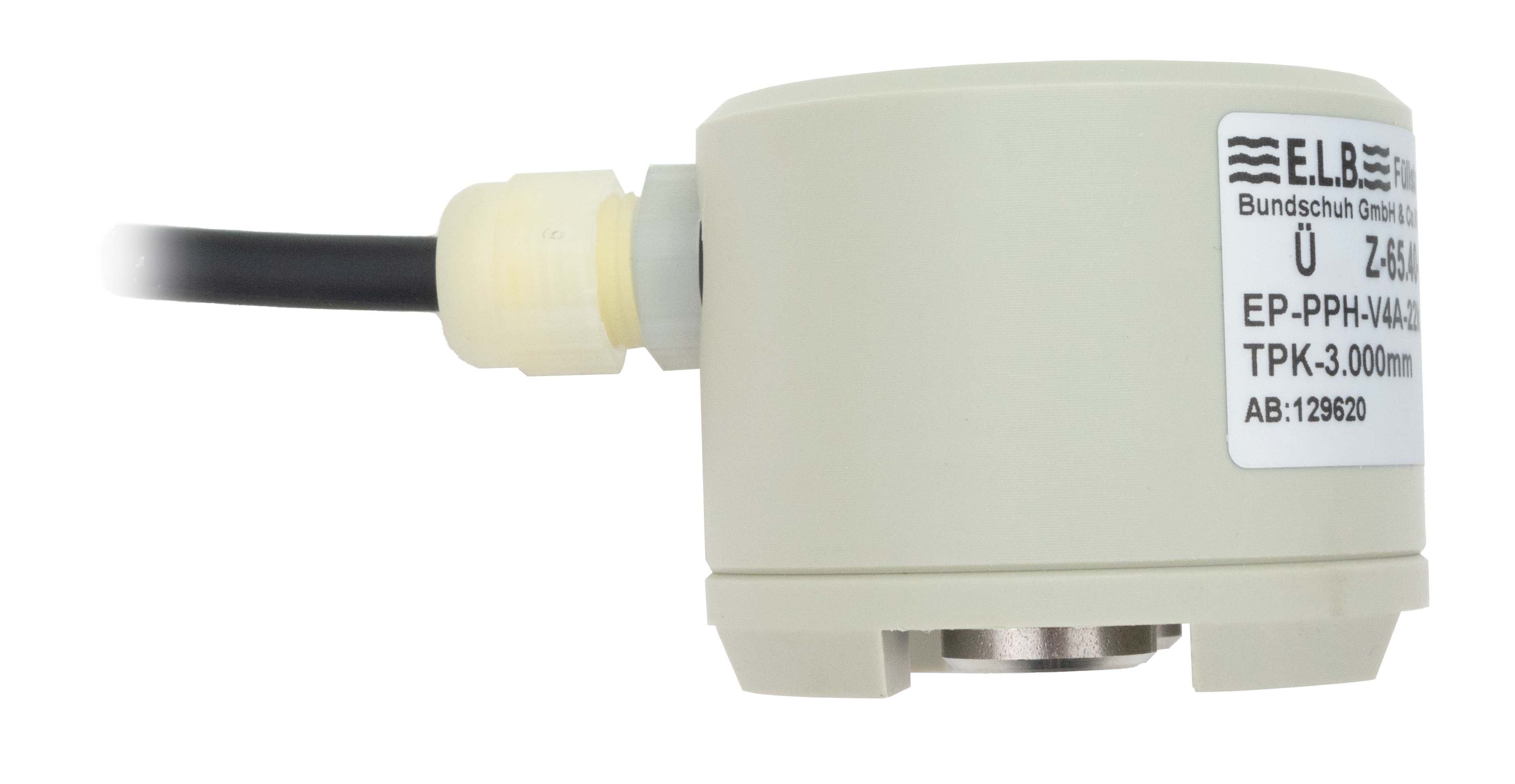

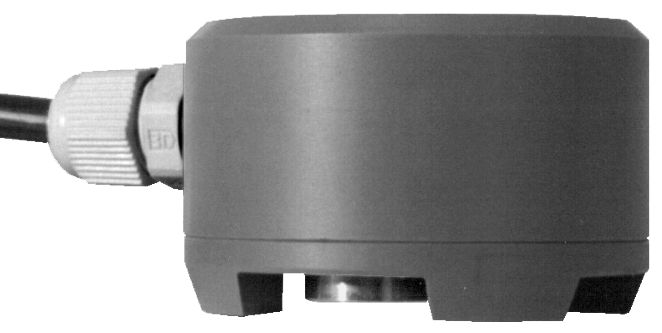

Plate Electrode as Leak Detector (conductive)

Características

EX Leckagesonde WHG

Familia de productos

Dispositivos de nivel de llenado

Clase de producto

Protección contra sobrellenado y sonda de fugas

Adecuado para

Líquido

Principio de medición

conductive

Características importantes

High chemical resistance
Low response height
Use in Ex-zone 1 (category 2)

Descripción del producto

with general approval for constructions Z-65.40-191

Datos técnicos

Propiedades

Clase de protección EN60529: IP 68

Temperatura de funcionamiento: atmosphärisch

Presión de funcionamiento: atmosphärisch

Valor de resistencia de la monitorización en línea: 22 kΩ / 100 kΩ

Longitud del cable: auf Wunsch

Material

Cable: TPK (PVC Basis)

Varillas del sensor: Edelstahl (1.4571) | Hastelloy B | Hastelloy C | Titan | Tantal | Glaskohlenstoff

Opciones

material del cable: FEP (Teflon) | EX (PVC blau)

EP 24V Configurar

Sondenkörpermaterial

Stabmaterial

Kabellänge

Leitungsüberwachungswiderstand

Kabelmaterial

Ex-Zulassung

Su configuración

Designación básica: E

Sondenkörpermaterial

Stabmaterial

Kabellänge

Leitungsüberwachungswiderstand

Kabelmaterial

Ex-Zulassung

product description

Das Elektronikteile mit oder ohne Kabel, wird in die Plattenelektrode EP eingebaut und hat eine Versorgungsspannung von 24 V DC.

Das Elektronikteil besitzt einen Schließer-Ausgang in Ruhestromausführung (Sonde nicht benetzt: Kontakt ist geschlossen).

Merkmal	Eigenschaft
Schutzart EN 60529	IP 68
Betriebstemperatur	–20...+85 °C
Lagertemperatur	–30...+85 °C
Nennspannung	24...30 V DC
Leistungsaufnahme	max. 2 W
Schaltspannung	max. 230 V AC / V DC min. 5 V DC (CMOS-Relais)
Schaltstrom	max. 0,1 A AC / A DC min. 1 mA
Schaltleistung	max. 25 VA / W
Empfindlichkeit	100 kΩ

Más información del producto

The EP plate electrodes are approved by the DIBt (German Institute for Structural Engineering) for monitoring collecting basins, collecting devices, control and filling shafts.

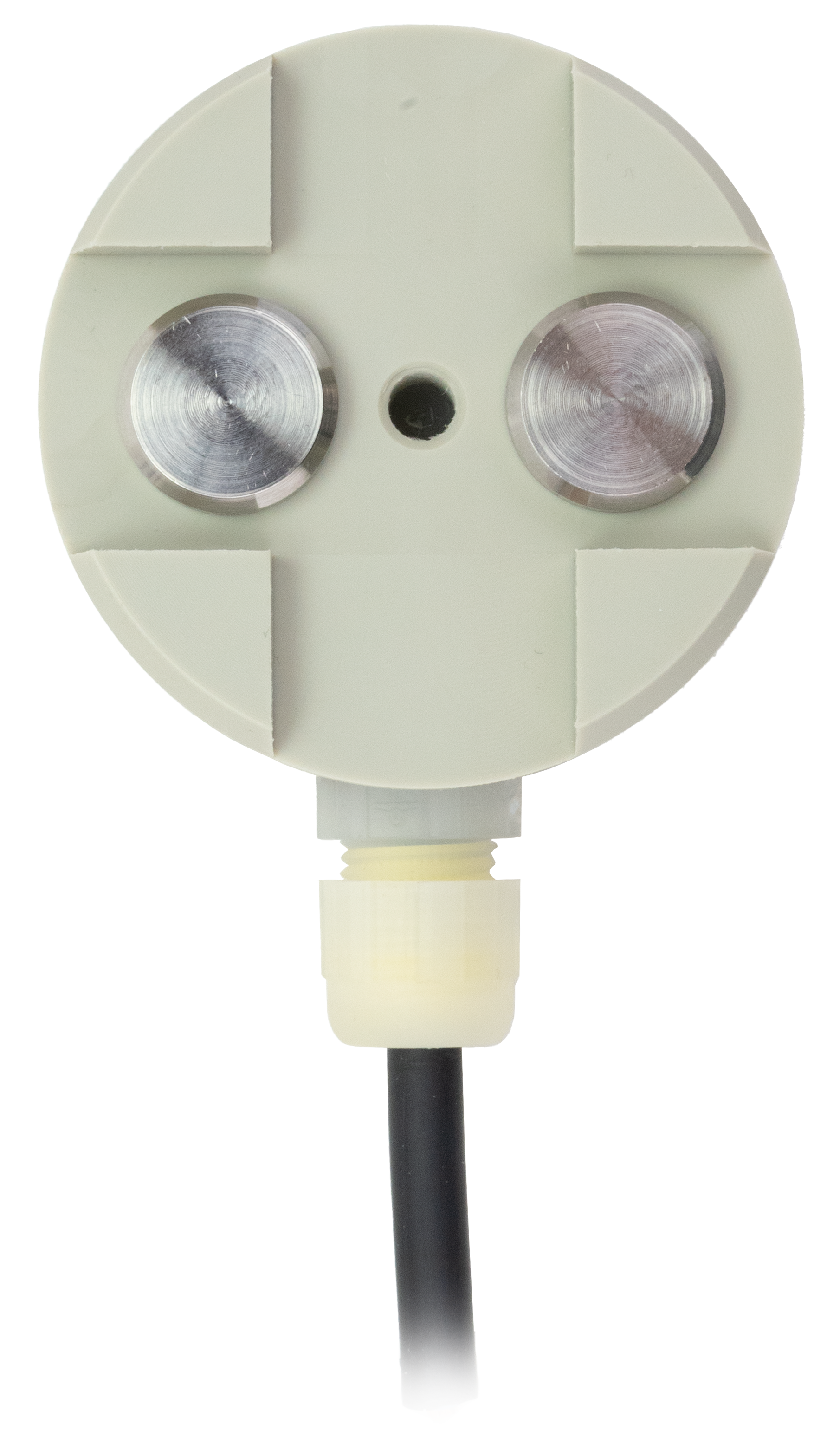

The detector body of the EP is made of the materials PE, PPH, PVC, PTFE or PVDF, depending on requirements. The electrode tips are made of stainless steel, 1.4571, Hastelloy B, Hastelloy C, titanium, tantalum or glasscarbon. Through this the EP is suitable for use with highly aggressive media. The electrode relays ER-107…, ER-217… or ER-145… (intrinsically safe control circuit) supply a measuring voltage which allows an operating current to flow via the resistance built in the conductive electrode through the signal line. If the conductive medium rises to the height of the electrode tip of the level sensor, a circuit is closed. This causes a change-over of the voltage-free output contacts on the electrode relay. In order to take into account different condu- ctivities of the liquids, the electrode relays ER-107…, ER-217… or ER-145… can be supplied in two different response ranges (1…30 k / 6…90 k). Within these ranges the responding value can be adjusted by means of a potentiometer. If a cable interruption occurs the output contacts are changed over (as for an alarm caused through reaching the‚ response height or a voltage breakdown). If a cable short-circuit occurs this corresponds to an “alarm signal” (as when the response height is reached). The electrode relay works according to the closed-circuit principle, i.e. in case of a power failure the output contacts switch as when reaching the response height.
