Descripción del producto
Our alarm indicators type OAA-300 are stand-alone signaling devices with optic and acoustic alarm indication.
Datos técnicos
Propiedades
- Clase de protección EN60529
- IP 65
- Temperatura de funcionamiento
- – 20…+60 °C
- Temperatura de almacenamiento
- – 30…+80 °C
- Sensibilidad
- bei konduktiver Messung: 3, 10, 30, 100kΩ

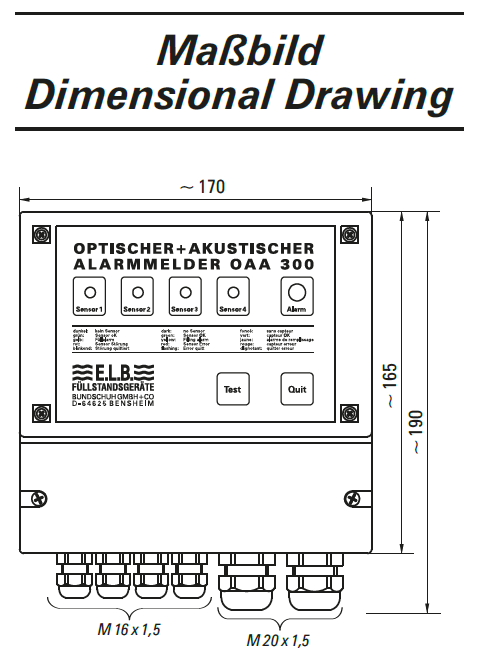

- Dimensiones
- 170 x 190 x 85 mm
- Peso
- ca. 0,8 kg
Circuitos de control
- Tensión en circuito abierto
- max. 10 V DC
- Corriente de cortocircuito
- max. 10 mA
- Retardo de conmutación
- ca. 0,5 s
Fuente de alimentación
- Voltaje nominal
- 230 V AC (optional 24, 115, 240 V AC 24 V DC
- Frecuencia nominal
- 48...62 Hz
- Consumo eléctrico
- max. 3 W/VA
Salidas
- Voltaje de conmutación
- max. 250 V
- Corriente de conmutación
- max. 3 A
- Capacidad de conmutación
- max. 500 VA | max. 50 W
- Volumen
- 75 dB
OAA-300 Configurar
Su configuración
- Designación básica
- OAA-300
- Ausführung
- Versorgungsspannung
- Signalgeber
Más información del producto

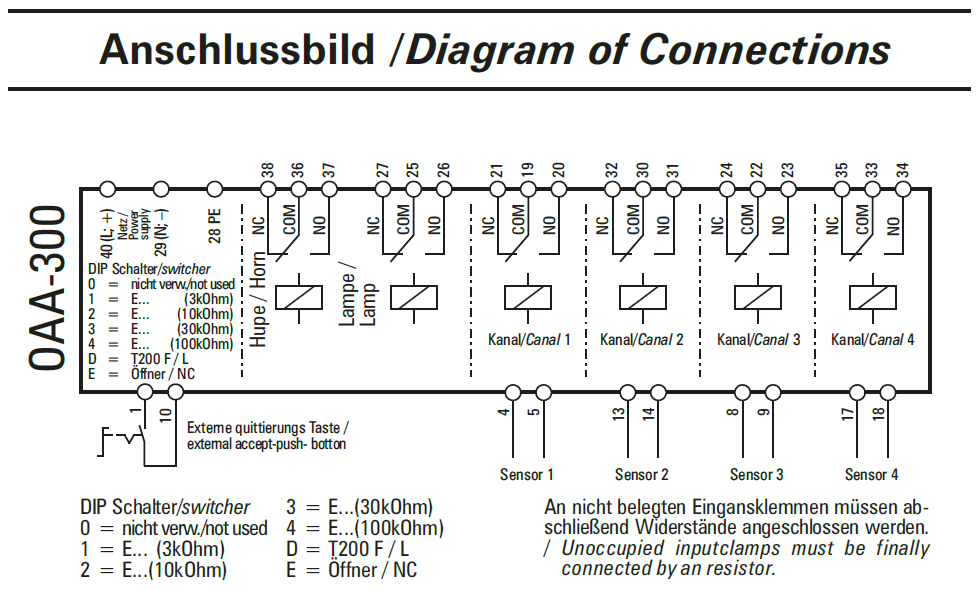

Combined with a liquid level sensor (e.g. T-200F, EF2 or EFV2) and a leak detector (e.g. T-200L, ELH or EP) the OAA-300 can be used as a local monitoring device of a tank. OAA-300 records the limit-value signals of the connected level sensor / leak detector and releases an acoustic signal and an optical signal (acknowledgeable). The device is provided with an opencircuit and a short-line fault monitoring. Each input has a floating changeover contact (having the same working principle as a “lamp” contact) as an additional output for controlling actuators, for example. It is also possible to connect an external acousto-optical signalling device to the alarm indicator. All output contacts are operated in closed-circuit working.
- Compact design for local installation
- protection class according to EN 60529: IP 65
- Available with 1 to 4 channels

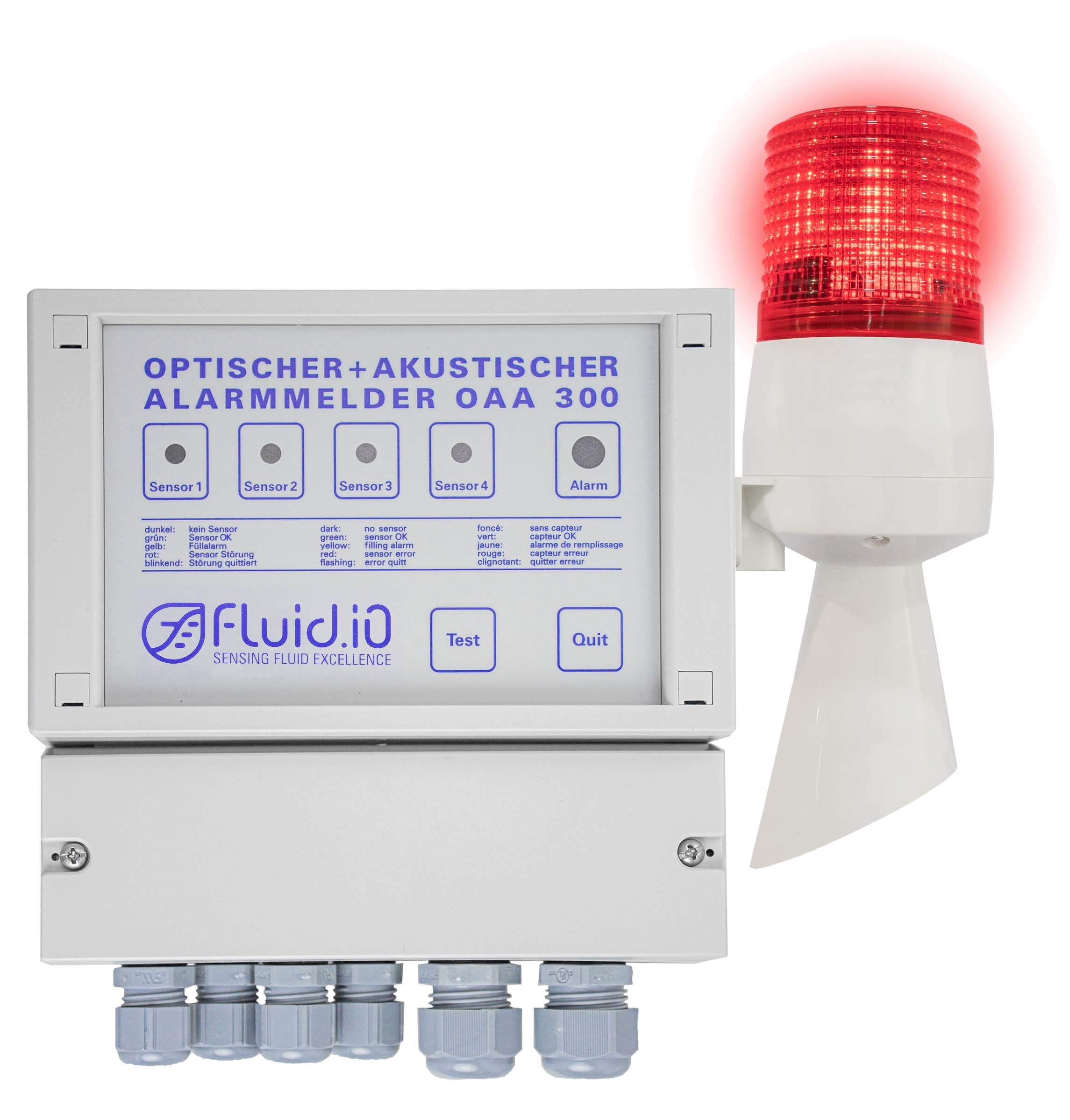

- Internal acoustic signal and optic signal Outputs for controlling external signal lamp or alarm horn
- Additional separate outputs for controlling shutoff valves , alarm relaying to the control room etc.
- Integrated monitoring device (with optic / acoustic alarm indicator)
- Alarm indicator with more than 4 channels on request
