BK-3X0 . Indicadores mecánicos bypass

Bistable change-over contact

Características

Bypass

Familia de productos

Dispositivos de nivel de llenado

Clase de producto

Indicadores mecánicos

Adecuado para

Líquido

Principio de medición

Magnet

Características importantes

nachträgliche Installation möglich

Descripción del producto

Magnetically actuated changeover switch, which permanently changes its electrical switching state as a result of a magnetic system passing by, depending on the direction of movement.

Datos técnicos

Propiedades

Clase de protección EN60529: IP 65

Temperatura de funcionamiento: –25...+70 °C

Sección de cable máx.: 1,5mm²

Distancia del punto de conmutación entre dos contactos: min. 40 mm

Histéresis de conmutación: ca. 10-15 mm

Material

Carcasa: Polycarbonat

Clip de montaje: V2A, Kabelbinder (PP)

Remache: V2A

Conexión roscada: M 20 x 1.5, Polyamid

Peso

BK-390-50: 137 g

BK-390-63 / BK-380: 140 g

Contacto de conmutación

Voltaje de conmutación: 5...250 V AC/DC

Corriente de conmutación: 1mA...6 A AC/DC

Capacidad (mín.) de conmutación: 300 VA, 60 W

Capacidad (máx.) de conmutación: 5 mW

Más información del producto

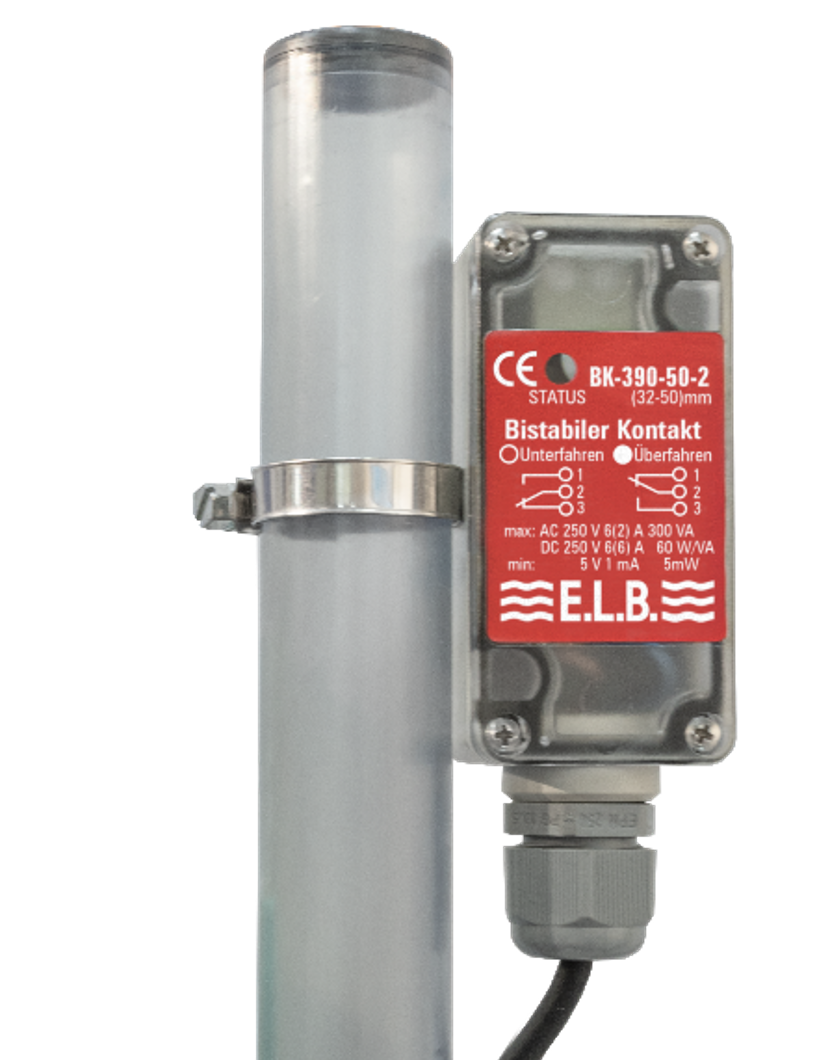

The switching status of the BK-380, BK-390 is displayed in the status window of the housing cover. When the housing is open, the bistable changeover contact can be operated manually. This simplifies commissioning and enables tests of the downstream control equipment.

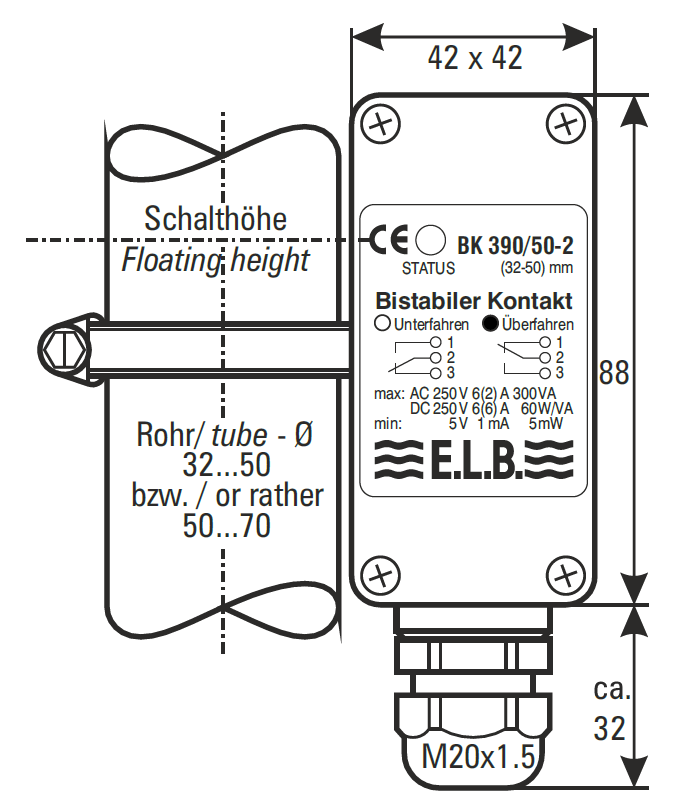

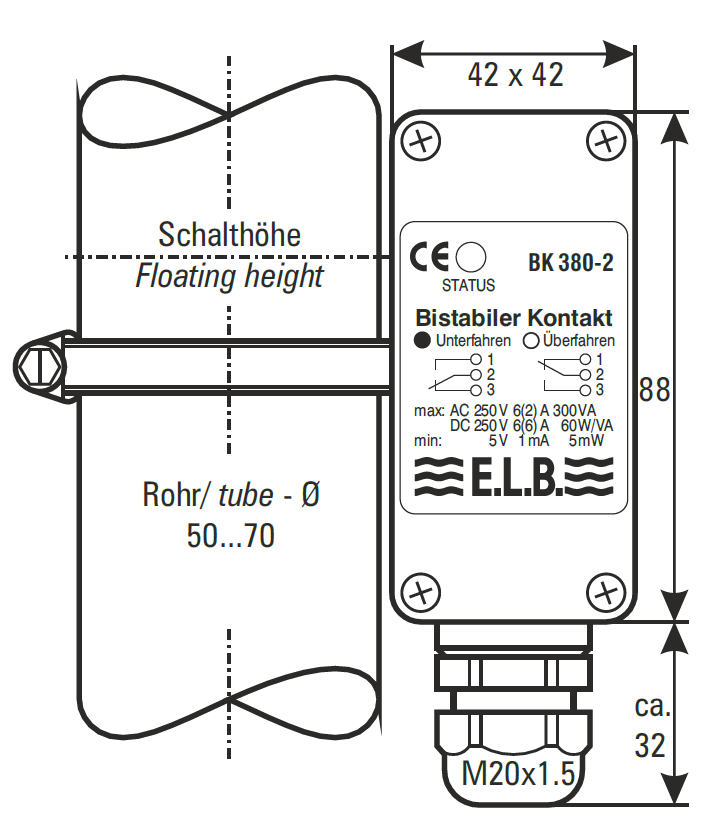

A stainless steel pipe clamp is used for mounting on bypass or sightglass pipes with diameters of 32-50 mm or 50-70 mm. The bistable contact BK-390 can also be fixed with cable ties. These are suitable for pipes with a diameter of 25-70 mm.
The switching unit of the BK-380, BK-390 consists essentially of a microswitch, the permanent magnet actuator and the ferromagnetic holding element.

When a magnetic system passes the active surface of the BK-380, BK-390, the holding force between the actuator and the holding element is released and a rotary movement of the actuator is triggered, which causes the microswitch to switch. The almost rotationally symmetrical shape of the actuator and the magnetic stabilisation of the switch positions ensure maximum resistance to shock and vibration.
shock and vibration resistance is achieved.
