Descripción del producto
The top-mounted tank indicator is a mechanically operated, on-the-spot indicator. The liquid level in the tank located below the indicator is determined proportionately to the filling level and is indicated. Control of the level is easily achieved through the installation of switching contacts. The switching points for level control can be steplessly adjusted, on-the-spot and at any time.
Datos técnicos
Propiedades
- conexión
- G 1” (andere Gewinde auf Anfrage)
- Máx. Longitud del tubo guía

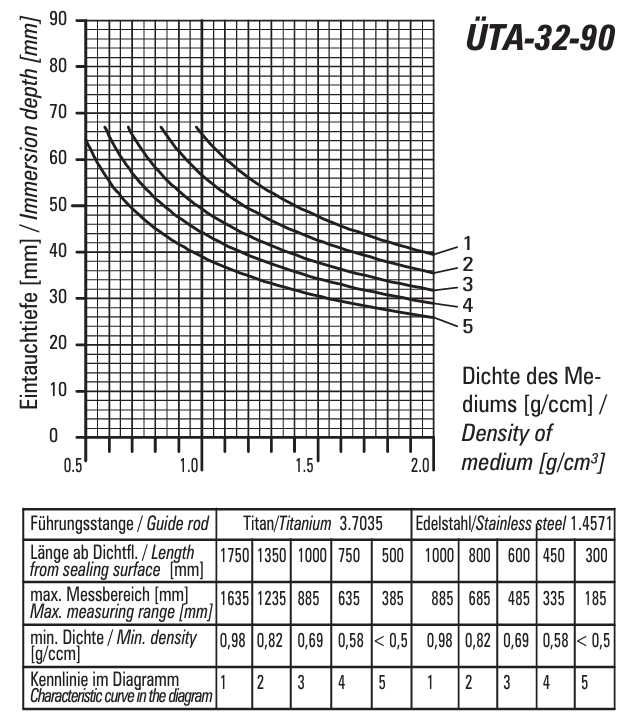

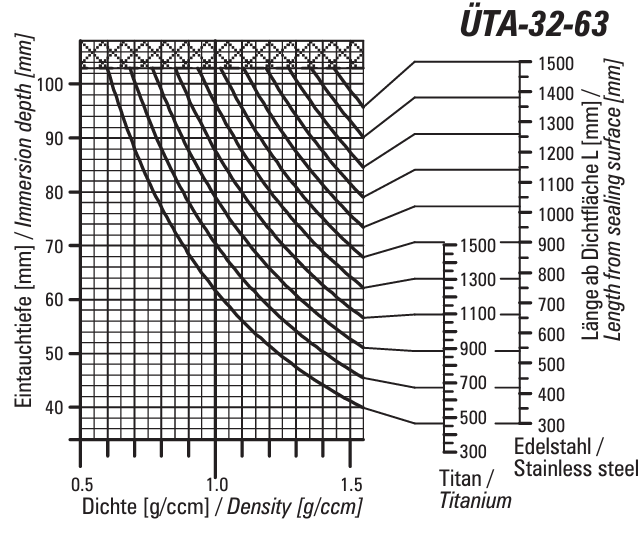

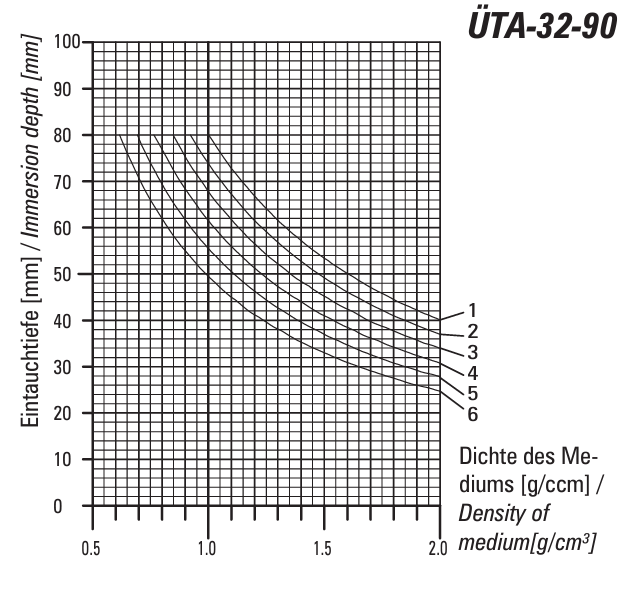

- siehe Diagramm
- Temperatura de funcionamiento
- atmosphär. Bedingungen
- Presión de funcionamiento
- atmosphär. Bedingungen
- Densidad del medio
- siehe Eintauchtiefe
- Número de contactos
- beliebig
- Carga del contacto
- max. 10 VA, max. 230 V AC
- Longitud
- max. 1750 mm
Material
- Tubo óptico
- PVC transparent
- conexión
- PVC-Verschraubung mit PTFE-Stangenführung
- Varilla guía
- Edelstahl, Titan, Hastelloy B, Hastelloy C oder PVCRohr
- flotador
- PE / PP
ÜTA-32 Configurar
Su configuración
- Designación básica
- ÜTA 32
- Float
- Guide-rod
- Length
Más información del producto

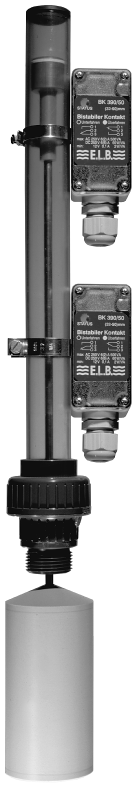

The top-mounted tank indicator is convincing through its simple principle, requiring no power supply and guaranteeing high operating reliability. Sufficient space must be available above the tank. Aggressive, highly viscous and polluted media can be monitored with the topmounted indicator.

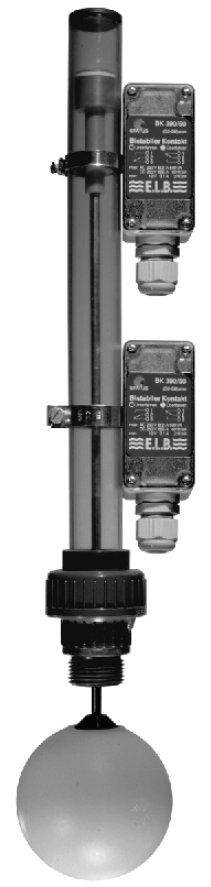

The top-mounted indicator is fixed to the tank with a G 1”-PVC screw connection (other threads on request). Changes in the filling level are picked up by a float and indicated via a guide rod (stainles steel, 1.4571, plastic, titanium, Hastelloy B or Hastelloy C) on the viewing tube. The viewing tube is made of transparent PVC. The actuating element consists of red PVC, in which a permanent magnet is inserted. This serves as an optical indicator and at the same time the magnet operates the exterior switching contacts (monostable or bistable) which are steplessly adjustable. The selected number of switching contacts on the top-mounted indicator is optional.
Indication can also be achieved with magnetic flaps. The permanent magnet rotates small aluminum wafers with inserted bar magnets. When the level rises these are turned from white to red, and when the level drops from red to white.
