Descripción del producto

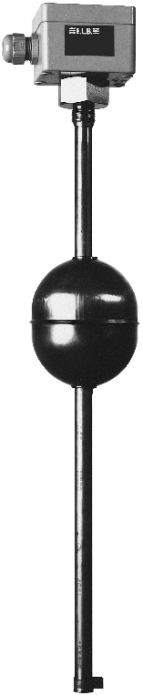

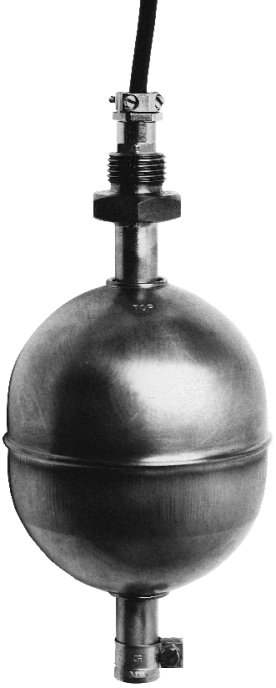

T30... continuous magnetic immersible probes are used for quasi-acquisition of the filling level in containers with liquid media.
Datos técnicos
Datos técnicos
- conexión
- Dose
- Clase de protección de la toma / clavija
- IP 65
- Clase de protección EN60529 cable
- IP 55
- Tipo de flotador
- 05 (06)
- Cable de conexión
- 1000 mm Silikon 0,5 mm²
- Longitud del tubo deslizante
- max. 6000 mm
- Temperatura de funcionamiento
- max. 130 °C
- Presión de funcionamiento
- max. 20 bar
- Resolución
- 7,5 mm | 10 mm | 15 mm | 20 mm| 1 % | 2 % | 5 %
- Accesorios
- R/I-Wandler TK-101
Densidad del materaial
- Tipo 05
- 0,81 g/cm³
- Tipo 06
- 0,67 g/cm³
TK-301 Configurar
Su configuración
- Designación básica
- TK301
- Material Rohr und Verschraubung
- Gewinde
- Ausführung
- Schwimmerausführung
- Anschluss
- Rohrlänge
- Auflösung
- Zubehör
Más información del producto
The materials used are PVC, PE, PPH, PTFE, brass or stainless steel (1.4571), depending on the requirements. This makes the magnetic immersion probes suitable for use with highly aggressive media. A ring magnet is built into the float sliding on the guide tube, which switches the reed contacts built into the guide tube with its magnetic field. These reed contacts pick up a partial resistance, which is proportional to the level, from a resistor chain, which is made up of individual resistors. Due to the technology used, the pick-up is quasi-continuous. The contacts are hermetically sealed gas-shielded contacts mounted on a printed circuit board inside the guide tube. The resolution can be adapted to the requirements due to the possible pitches of 7.5/10/15/20 mm or 1%/2%/5%.
Resolution of the measurement can be determined by the choice of the grid. The respective measurement can thus be optimally adapted to the conditions. Subsequent addition of limit values possible
