Name: TK-309-0 Stainless steel level sensor for Ex-Zone 0 (Cat.1)
Brand: Fluid.iO
SKU: D-02-08
Price: on request EUR

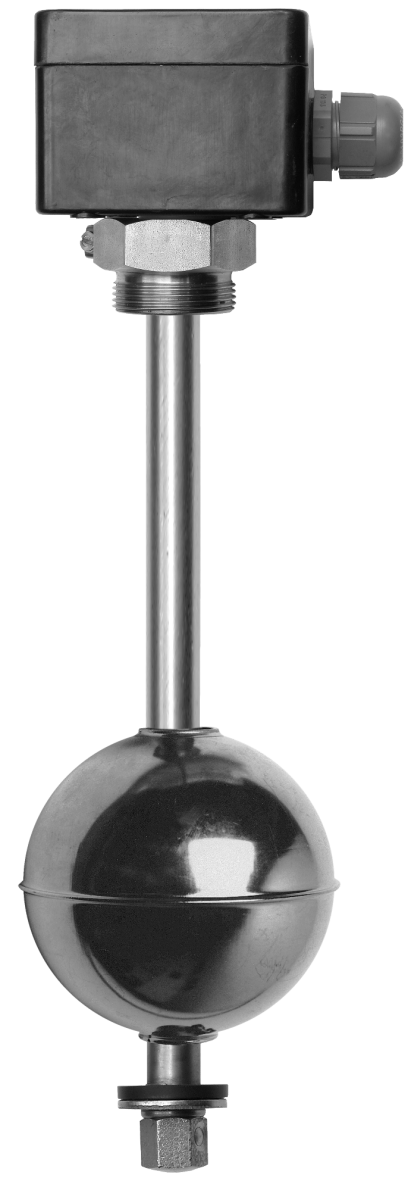

Stainless steel level sensor for Ex-Zone 0 (Cat.1)

Características

Familia de productos

Dispositivos de nivel de llenado

Clase de producto

Medición continua de nivel

Adecuado para

Líquido

Principio de medición

Schwimmer

Características importantes

Independent of - Pressure, - Temperature, - Foam, - Conductivity, - Dielectric
The output signal is proportional to the fill level and independent of the container shape
Free selection of limit values in the entire measuring range of the probes

Descripción del producto

T30... continuous magnetic immersible probes are used for quasi-acquisition of the filling level in containers with liquid media.

Datos técnicos

Clase de protección del enchufe: IP65

Tipo de flotador: Typ 07

Longitud del tubo deslizante: max. 6000 mm

Temperatura de funcionamiento: max. 135 °C

Presión de funcionamiento: max. 20 bar

Densidad del medio: Typ 07: 0,54 g/cm³

Resolución: 7,5 mm | 10mm |15 mm | 20 mm

Accesorios: R/I-Wandler TK-101

TK-309-0 Configurar

TK309/9 - [ 1 ] - [ 2 ] - [ 3 ] - [ 4 ] - [ 5 ] - [ 6 ] - [ 7 ]

1 Gewinde

A1” : G 1” für Außenmontage
S : Sonderwunsch (bitte angeben)

2 Schwimmerausführung

7 : Kugel Edelstahl 105 mm Ø

3 Anschluss

PO : Polyesterdose
AA : Aluminiumdose

4 Rohrlänge

R : Länge bitte angeben!

5 Auflösung

7,5 : 7,5 mm
10 : 10 mm
15 : 15 mm
20 : 20 mm

6 Explosionsschutz

EX : Mit Ex-Zulassung

7 Zubehör

0 : ohne Messumformer
M : mit Messumformer TK-101 Ausgang 4...20 mA, 24 V DC

Más información del producto

The materials used are PVC, PE, PPH, PTFE, brass or stainless steel (1.4571), depending on the requirements. This makes the magnetic immersion probes suitable for use with highly aggressive media. A ring magnet is built into the float sliding on the guide tube, which switches the reed contacts built into the guide tube with its magnetic field. These reed contacts pick up a partial resistance, which is proportional to the level, from a resistor chain, which is made up of individual resistors. Due to the technology used, the pick-up is quasi-continuous. The contacts are hermetically sealed gas-shielded contacts mounted on a printed circuit board inside the guide tube. The resolution can be adapted to the requirements due to the possible pitches of 7.5/10/15/20 mm or 1%/2%/5%.

Resolution of the measurement can be determined by the choice of the grid. The respective measurement can thus be optimally adapted to the conditions. Subsequent addition of limit values possible

Ex version:

Continuous level transmitters of the type series TK-30... can be used in category 1 and 2 hazardous areas when connected to certified intrinsically safe circuits of category "ia".
