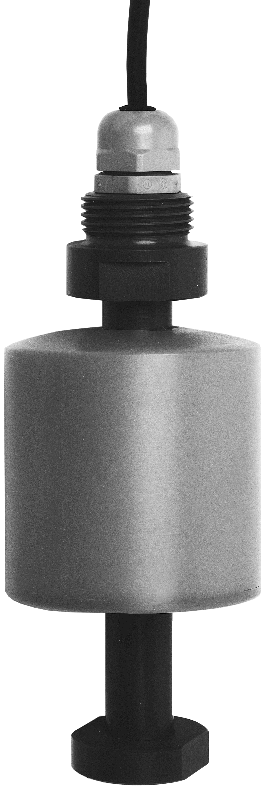

Name: TK-308 Liquid Level Measuring Instruments Series
Brand: Fluid.iO
SKU: D-02-08
Price: on request EUR

Liquid Level Measuring Instruments Series

Características

Familia de productos

Dispositivos de nivel de llenado

Clase de producto

Medición continua de nivel

Adecuado para

Líquido

Principio de medición

Schwimmer

Características importantes

Independent of - Pressure, - Temperature, - Foam, - Conductivity, - Dielectric
The output signal is proportional to the fill level and independent of the container shape
Free selection of limit values in the entire measuring range of the probes

Descripción del producto

T30... continuous magnetic immersible probes are used for quasi-acquisition of the filling level in containers with liquid media.

Datos técnicos

Clase de protección de la toma / clavija: IP 65

Clase de protección EN60529 cable: IP 55

Tipo de flotador: 11,12, 15, 17

Cable de conexión: 1000 mm LiYY 0,5 mm² oder Silikon 0,5 mm²

Longitud del tubo deslizante: max. 6000 mm

Presión de funcionamiento: max. 6 bar

Resolución: 7,5 mm | 10 mm | 15 mm | 20 mm | 1 % | 2 % | 5 %

Accesorios: R/I-Wandler TK-101

Temperatura de funcionamiento

PVC: max. 60 °C

PE: max. 80 °C

PP: max. 90 °C

Densidad del materaial

Tipo 11: 0,60 g/cm³

Tipo 12: 1,00 g/cm³

Tipo 15: 0,59 g/cm³

Tipo 17: 0,63 g/cm³

TK-308 Configurar

TK308 - [ 1 ] - [ 2 ] - [ 3 ] - [ 4 ] - [ 5 ] - [ 6 ] - [ 7 ] - [ 8 ]

1 Rohr-Verschraubungs-Material

PE : Polyethylen
PP : Polypropylen
PV : Polyvinylchlorid

2 Gewinde

I1” : G 1” für Innenmontage
A1” : G 1” für Außenmontage
A2” : G 2” für Außenmontage
A3” : G 3” für Außenmontage

3 Ausführung

F : fest
V : verstellbar (nur bei Außengewinde)

4 Schwimmerausführung

11 : Zylinder PE 78 mm Ø
12 : Zylinder PE 71 mm Ø
15 : Zylinder PP 78 mm Ø
17 : Zylinder PVC 78 mm Ø

5 Anschluss

PO : Polyesterdose
AA : Aluminiumdose
ST : 3fach-Stecker
LY : __ mm Kabel LiYY (Standard 1000 mm)
SIL : __ mm Kabel Silikon (Standard 1000 mm)

6 Rohrlänge

R : Länge bitte angeben!

7 Auflösung

7,5 : 7,5 mm
10 : 10 mm
15 : 15 mm
20 : 20 mm
1% : 1% (Ausgang 4..20 mA eingebaut in Polyester oder Aluminiumanschlussdose)
2% : 2% (Ausgang 4..20 mA eingebaut in Polyester oder Aluminiumanschlussdose)
5% : 5% (Ausgang 4..20 mA eingebaut in Polyester oder Aluminiumanschlussdose)

8 Zubehör

0 : ohne Messumformer
M : mit Messumformer TK-101 Ausgang 4...20 mA, 24 V DC

Más información del producto

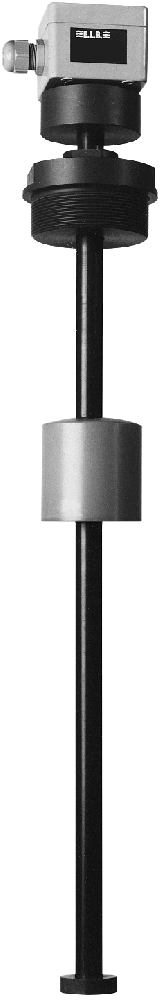

The materials used are PVC, PE, PPH, PTFE, brass or stainless steel (1.4571), depending on the requirements. This makes the magnetic immersion probes suitable for use with highly aggressive media. A ring magnet is built into the float sliding on the guide tube, which switches the reed contacts built into the guide tube with its magnetic field. These reed contacts pick up a partial resistance, which is proportional to the level, from a resistor chain, which is made up of individual resistors. Due to the technology used, the pick-up is quasi-continuous. The contacts are hermetically sealed gas-shielded contacts mounted on a printed circuit board inside the guide tube. The resolution can be adapted to the requirements due to the possible pitches of 7.5/10/15/20 mm or 1%/2%/5%.

Resolution of the measurement can be determined by the choice of the grid. The respective measurement can thus be optimally adapted to the conditions. Subsequent addition of limit values possible

Ex version:

Continuous level transmitters of the type series TK-30... can be used in category 1 and 2 hazardous areas when connected to certified intrinsically safe circuits of category "ia".
