Name: ZMF-100-IR gas detector with 4...20mA signal output
Brand: Fluid.iO
Price: on request EUR

gas detector with 4...20mA signal output

Características

NDIR 4...20 mA 0...10 V CO2

Familia de productos

Medición de gases

Clase de producto

Sensor de gas

Adecuado para

Gas

Principio de medición

optical

Características importantes

Wartungsfrei durch NDIR-Technologie
Wählbare Messbereiche
4...20 mA oder 0...10 V Signalausgang

Descripción del producto

industrial CO2 sensor ZMF-100-IR with a measuring range of up to 50,000ppm

Datos técnicos

Rasgos del producto

Principio de medición: optisch, NDIR (nicht-dispersive Infrarot-Absorptionsmessung)

Tensión de funcionamiento: 24 V DC / 100 mA

Tiempo de calentamiento: ca. 5 min

Tiempo de respuesta: ca. 30 s

Repetibilidad: +/- 1%

Carcasa: Aluminium (rot) IP54

Peso: ca. 500g

Alcance del eje: 4,27 - 4,35 µm (4270-4350 nm)

Entrada de gas: per Diffusion

condiciones ambientales

Rango de temperatura de funcionamiento: -10...+50 °C

Rango de temperatura de almacenamiento: -40...+100 °C

Humedad relativa: 15..95 %

Presión de aire: 900...1100 hPa

ZMF-100-IR Configurar

ZMF-100-IR - [ 1 ] - [ 2 ]

1 Output signal

010 : 0...10V
420 : 4...20mA

2 Measuring range

3000 : 0...3000 ppm
5000 : 0...5000 ppm
6000 : 0...6000 ppm
10000 : 0...10000 ppm
20000 : 0...20000 ppm
30000 : 0...30000 ppm
50000 : 0...50000 ppm

Más información del producto

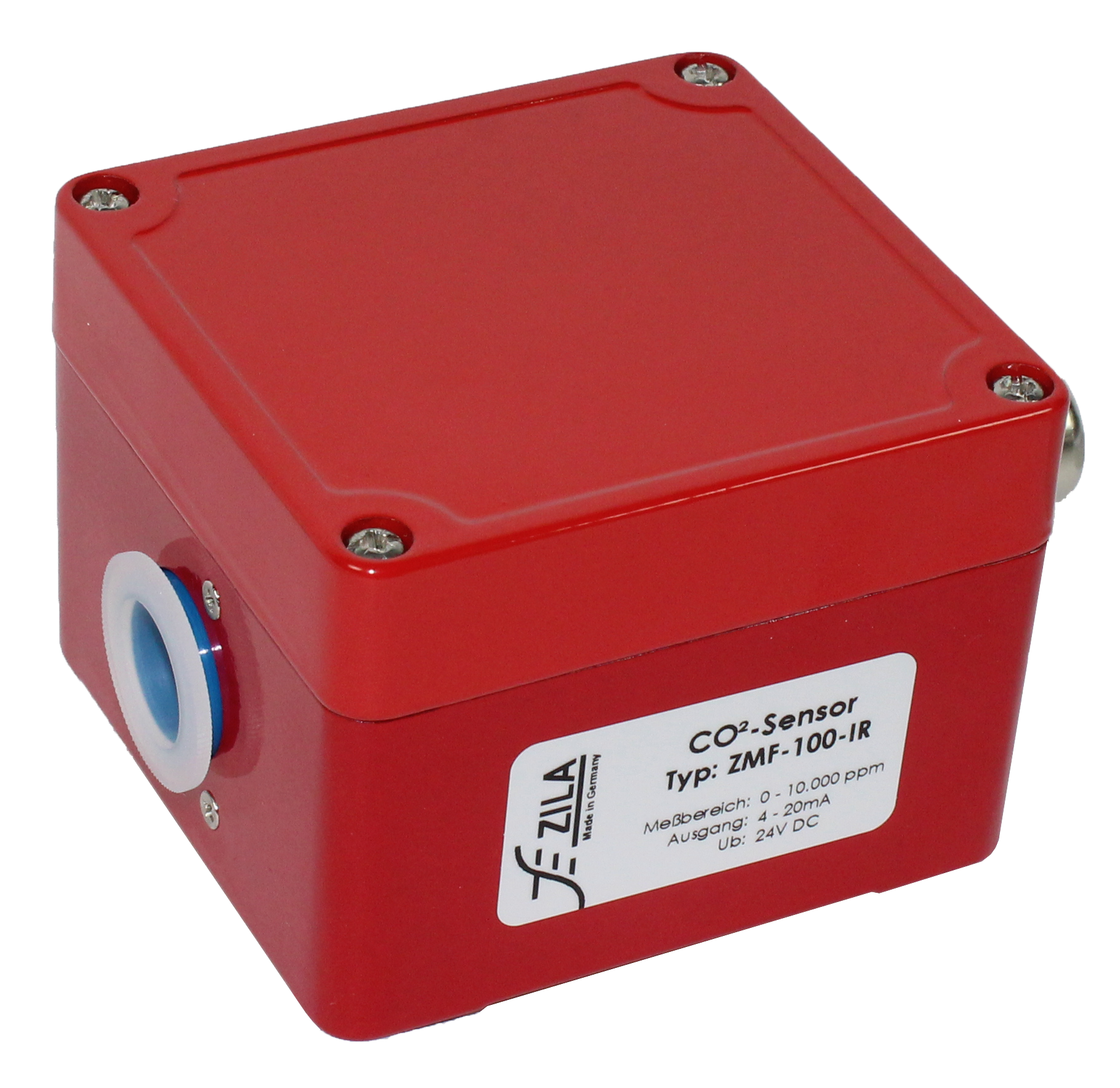

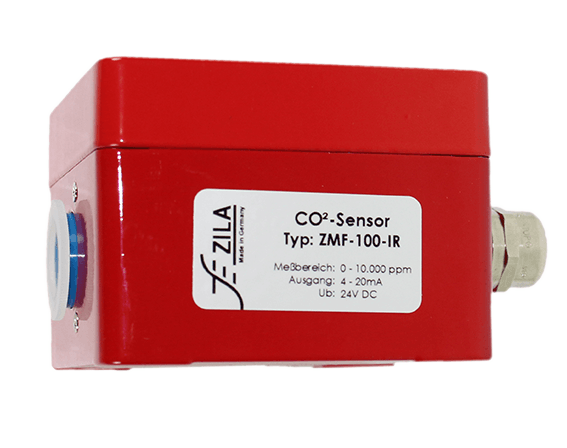

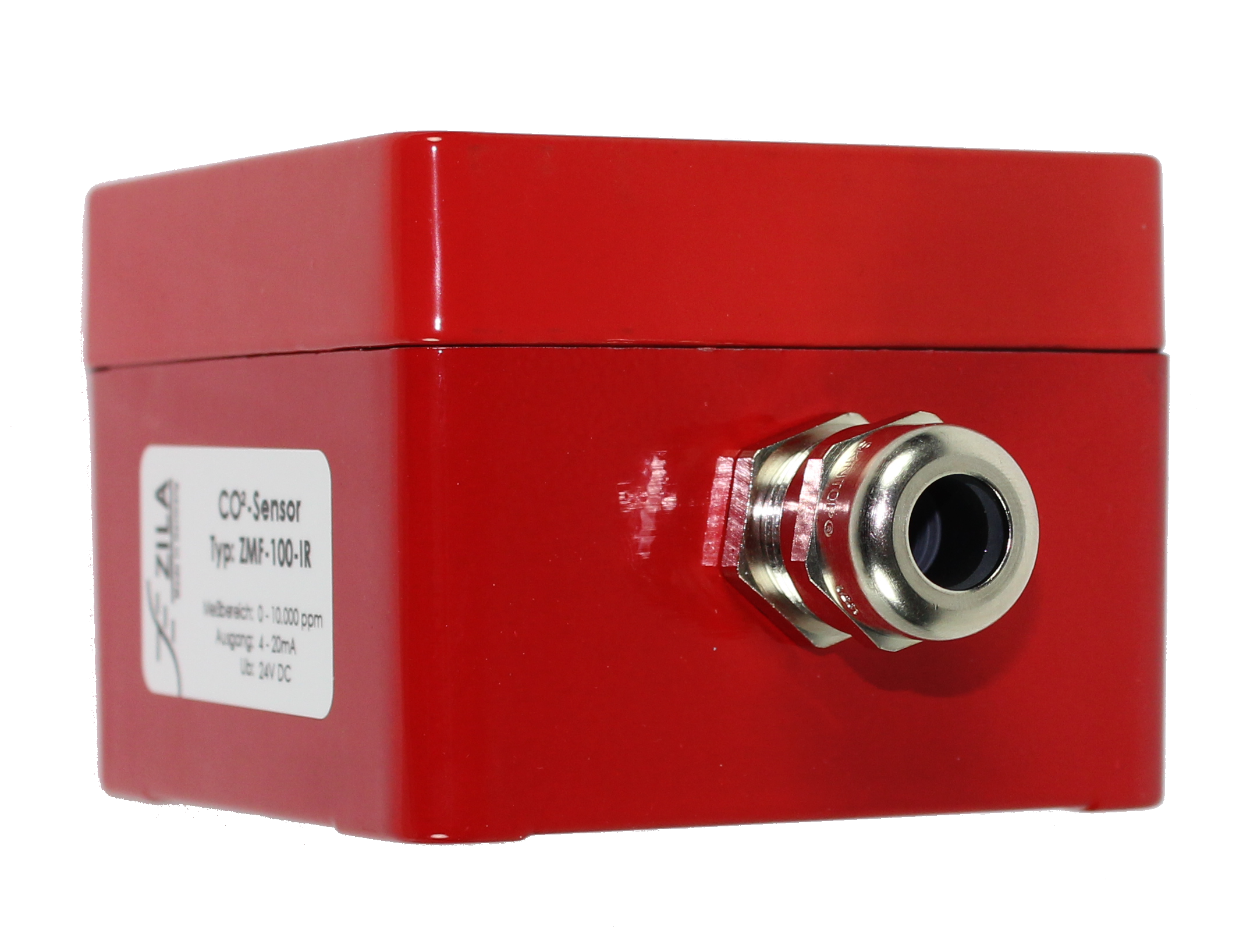

Robust CO₂ sensor in an aluminium housing with the optical measuring principle NDIR, used for rapid and exact carbon dioxide concentration measurement in industrial applications.

The ZMF-100-IR is a CO₂ sensor, based on infrared absorption measurement for detecting the CO₂ concentration in the air, using the optical measuring principle NDIR (non-dispersive infrared absorption measurement). With its robust, red aluminum housing, it is perfectly suited for industrial use. The measuring range of the sensor covers 0 to 50,000ppm, which is why the device can also be integrated into plant safety concepts. It also features internal error monitoring. The measurement signals from a downstream device can be evaluated by the integrated 0...10 V or 4...20 mA signal output. The device is operated via 24 V DC and can be mounted on the wall.

Product advantages

Wear-free: Excellent long-term stability (service life 5 years)
Extremely robust housing for industrial use
Attractive price-performance ratio
Maintenance-free, due to NDIR technology
4...20 mA or 0...10 V signal output
Low sensitivity to external influences, such as pressure fluctuations and vibrations
Selectable measuring ranges
