Descripción del producto
for actuating monostable and bistable contacts
Datos técnicos
Variantes
- 40

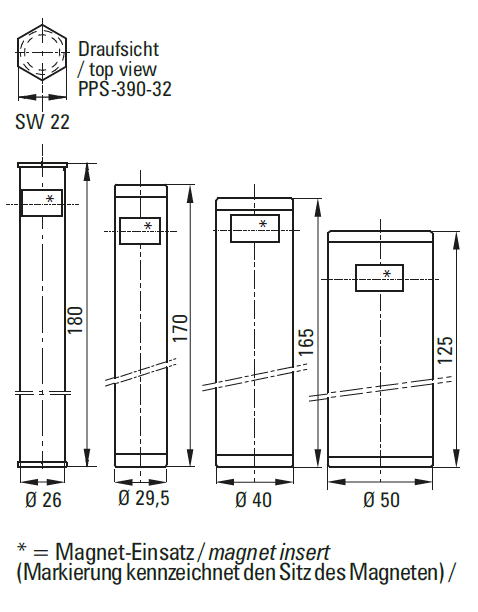

- AußenØ 40 x 165 mm, für RohraußenØ 50 mm Gewicht ca. 145 g
- 50
- AußenØ 50 x 125 mm, für RohraußenØ 63 mm Gewicht ca. 156 g
PVS-390 Configurar
Su configuración
- Designación básica
- PVS-390
- Mediumsdichte
Más información del producto

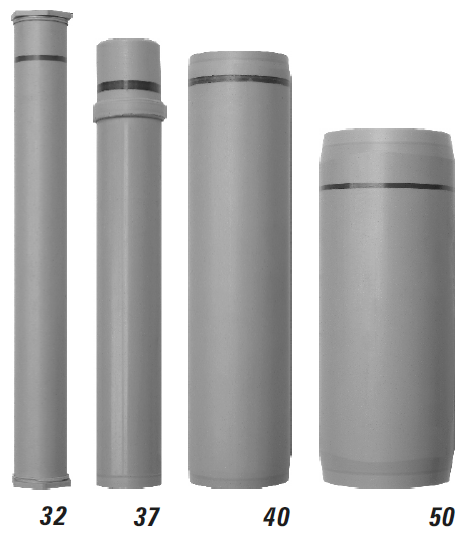

The PPS/PVS-390... Floats are suitable for our W-35... water level indicators and other bypass systems. The matching float must be chosen for the corresponding pipe diameter. The “0” mark represents “up”, the redmark (ring) indicates the location of the integrated magnet (alternatively, the magnet can also be installed on the bottom The float serves as optical indication of the fluid level and actuates at the same time the infinitely variable contacts on the outside (e.g. BK-390-... ). The number of the contacts to be switched can be defined as desired. The floats may not be operated near strong magnetic fields or ferromagnetic parts.
