Descripción del producto
Decentralised CO2 monitoring with direct control of various supply and exhaust air elements such as fans and dampers
Datos técnicos
Propiedades
- Fuente de alimentación
- 230 V AC
- Rango de medición (CO2)
- 0..10.000 ppm
- Precisión de medición de CO2
- ± 50ppm +3 % vom Messwert
- Condiciones de funcionamiento
- 0…50°C / 0…85 %rH
- Condiciones de almacenamiento
- -30…70°C / 0…85 %rH
- Clase de protección
- IP 31
- EMV/ESD
- EN 50082-1, EN 50082-2
- Salida de señal
- I²C
Más información del producto

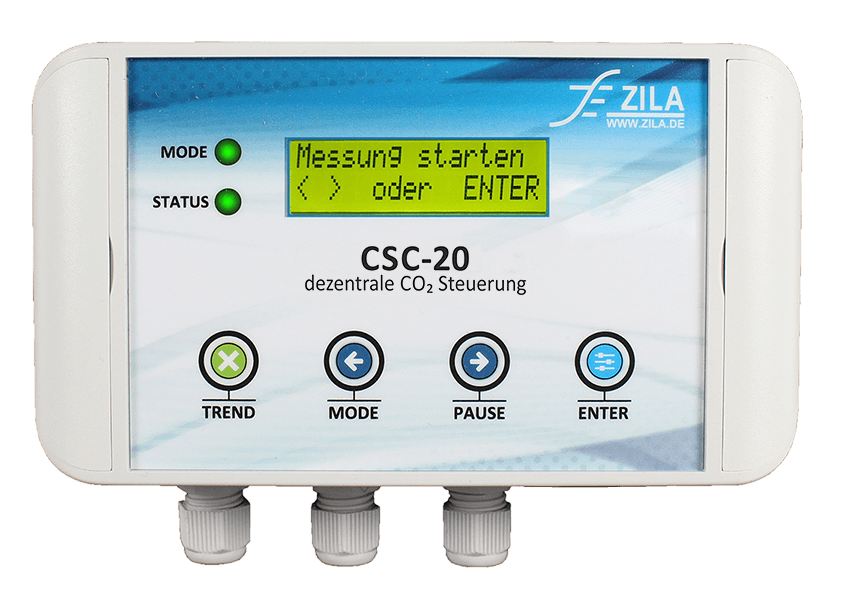

The decentralised CO2 control CSC-20 YUGO comes with an integrated CO2 sensor and can activate fans for supply and exhaust air, depending on the measured CO2 concentration. The control has a display indicating the measured values and also a total of four operating keys with which the parameters can be configured very easily thanks to the intuitive menu navigation. Due to the optical measuring principle NDIR (non-dispersive infrared absorption measurement), the integrated CO2 sensor is maintenance-free and durable. With all these features, the device contributes to an automatic, controlled and needs-based ventilation of all kinds of rooms.
