Descripción del producto
Luminous row displays of type series TK-320...TK-322 are used for visually displaying process states such as filling levels.
Datos técnicos

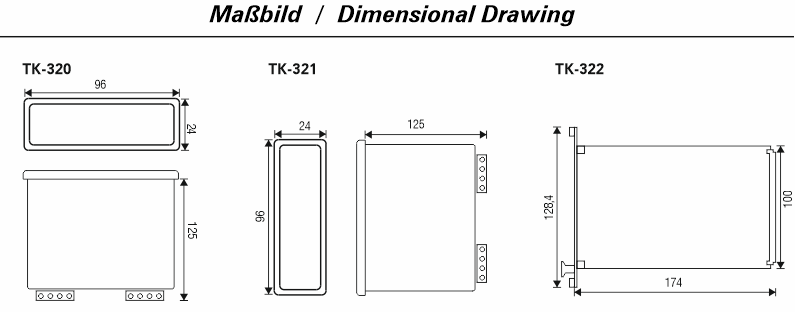

Tipo
- TK-320
- Schaltschrankeinbaugehäuse 24 x 96 mm
- TK-321
- Schaltschrankeinbaugehäuse 24 x 96 mm
- TK-322
- 19” Karteneinschub 7 TE, 3 HE
Propiedades
- Clase de protección EN60529
- IP 52
- Temperatura de funcionamiento
- – 20 °C...+60 °C
- Voltaje nominal
- 24 V DC...230 V AC
- Entrada

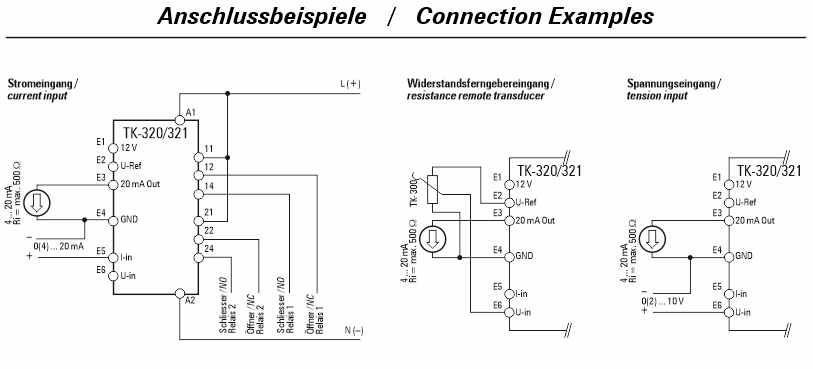

- 0(4)...20 mA | 0(2)...10 V DC | 5...10kΩ
- Salida
- 4...20 mA | Bürde max. 500 Ω
- Relé
- 2 x Umschalter max. 230 V | min. 5 V | max. 3 A | min 1 mA
Visualización
- Número de LEDs
- 33 (rot/grün); 32 (TK-322)
- Resolución
- ca. 3,5 %
- Error
- ± 1 LED
- conexión
- Schraubklemmen
- Conexión TK-322
- Steckerleiste
- Entrada
- 0(4)...20 mA | 0(2)...10 V DC | 5...10kΩ
- Salida
- 4...20 mA | max. load 500 Ω
- Relé (2x interruptor)
- max. 230 V | min. 5 V
- Relé (2x interruptor)
- max. 3 A | min. 1 mA
TK-32X Configurar
Su configuración
- Designación básica
- TK-32
- Ausführung
- Leuchtdiode
Más información del producto
Through their design using strongly illuminating light-emitting diodes they are ideal for difficult applications, e.g. with light coloured surroundings. The luminous row permits a general view of the process state even from a distance. To the input switch input signals 0 (4)… 20 mA, 0… 10 V DC or “Ferngeber” (at least 5 KW) can be attached. Through the input signals, such as load-independent current in the standard range (0/4...20 mA) these display units can be used in all applications. In combination with our liquid level measuring instruments of the type series TK-30... and the evaluators of our type series TK-31..., these luminous row displays provide an optimum device combination for signalling liquid levels.

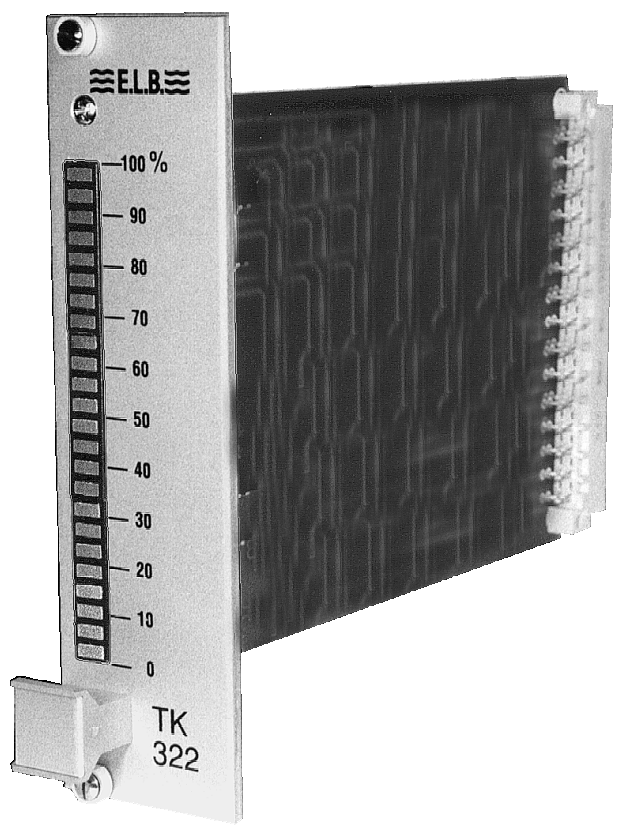

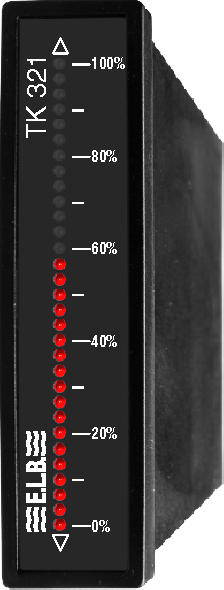

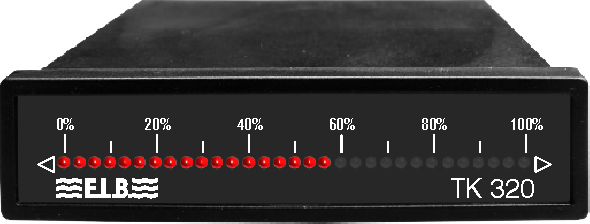

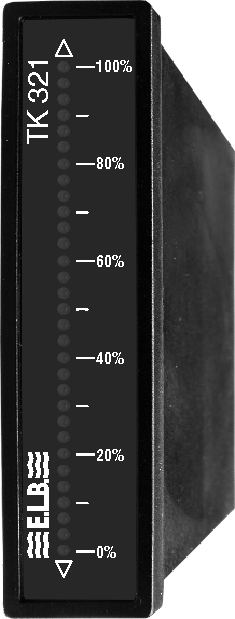

The various forms of combinations permit the user to select the variant most suitable for his particular installation. The TK-322 luminous row display can be used as a plug-in board in 19” modules. Types TK-320 and TK-321 are designed for installation of luminous row displays in switchboards etc. For detecting the input signal, of potentiometer setting, trigger the luminous row display, trigger the outgoing relay and the settings of the analog output signal (4...20mA) a micro controller is used. Over 31 LEDs are used for the display of the measured value. One LED are used for measure range and one LED are used to show the underflow. As LED color can be chosen red or green.
