Name: KST-20 Vento Automatic, controlled ventilation and dehumidification as well as cooling of rooms with aH-Controlled technology*.
Brand: Fluid.iO
SKU: K-01-03
Price: on request EUR

Automatic, controlled ventilation and dehumidification as well as cooling of rooms with aH-Controlled technology*.

Características

aH-Controlled

Familia de productos

Ventilación

Clase de producto

Control de la ventilación

Adecuado para

Gas

Principio de medición

Características importantes

Three operating modes: ventilation, dehumidification, cooling

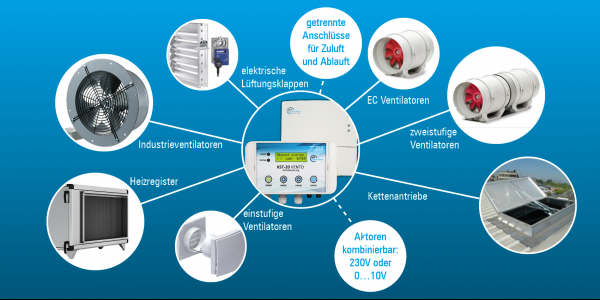

Separate connections for supply and exhaust elements up to 500W
Display and operating keys for displaying and configuring the measured values and parameters

Descripción del producto

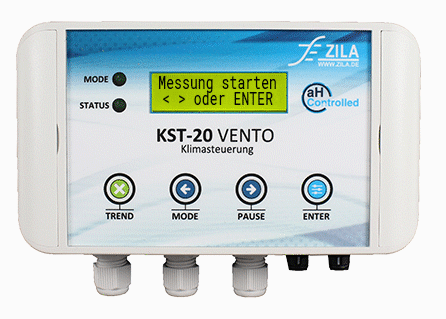

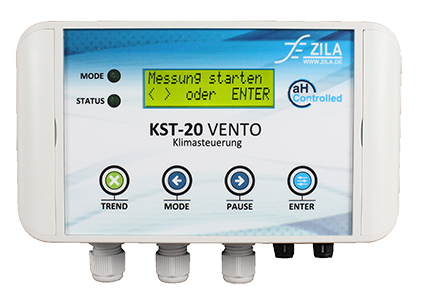

The KST-20 Vento is a climate control unit with aH-Controlled technology for ventilation, dehumidification and cooling for all types of private, commercial and industrial rooms. With the three operating modes for ventilation, dehumidification and cooling, the KST-20 Vento climate control can be used flexibly in almost all living, working and industrial areas.

Datos técnicos

Propiedades

Fuente de alimentación: 230 V AC

Clase de protección: IP 65

Dimensiones (LxAxH): 160 x 90 x 50 mm

Carcasa: hochwertiges ASA+PC (UL 94 V-0) für harte Beanspruchung, flammwidrig und selbstverlöschend

Salida de señal: I²C

Rango de medición

rango de medición (Humedad): 0…100% rF,

Precisión de medición (humedad): ±2%

Rango de medición (Temperatura): -40…+80°C

Precisión de medición (temperatura): ±0,2°C

KST-20 Vento Configurar

KST-20 Vento - [ 1 ] - [ 2 ]

1 Innensensor

Standard : Aufsteckfühler (Standard)
05mI : abgesetzt mit Kabel 5m
10mI : abgesetzt mit Kabel 10m
20mI : abgesetzt mit Kabel 20m (max)

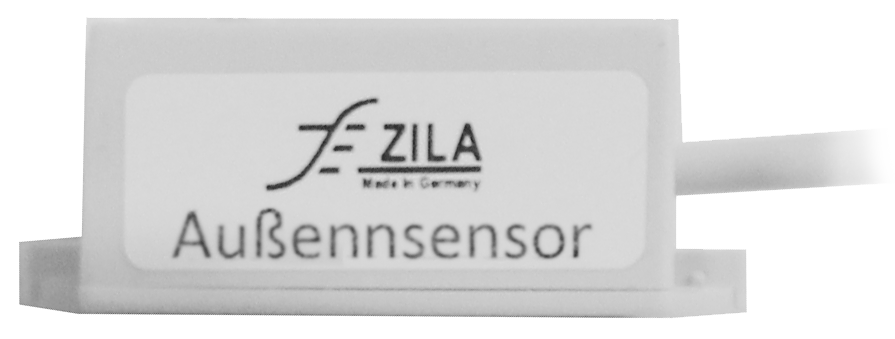

2 Außensensor

10mA : abgesetzt mit 10m Kabel (Standard)
15mA : abgesetzt mit 15m Kabel
20mA : abgesetzt mit 20m Kabel (max)

Más información del producto

Living space ventilation according to DIN 1946-6

For living spaces, the unit can behave in accordance with DIN standard 1946-6 and distinguish between different ventilation levels in a controlled manner.

Temperature-dependent cooling

By simply adjusting the configuration parameters, the unit becomes a temperature-dependent cooling control for factory and production halls as well as for server rooms and many other sensitive electrical installations.

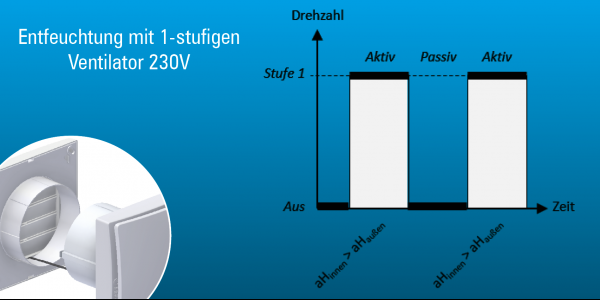

Dehumidification as a function of absolute humidity

In dehumidification mode, the KST-20 Vento climate control unit is suitable for preventing mould and protecting buildings as well as for maintaining a comfortable climate. Moisture is removed from the room in a controlled and reliable manner and an optimum temperature-humidity ratio is automatically ensured depending on the absolute humidity.
