Descripción del producto
The ZMF-20X series includes sensors & transmitters for measuring gas concentrations of various gases such as CO2, methane, propane and SF-6. This makes the sensors suitable for many and applications. The ZMF-20X gas sensors are designed to be extremely rugged & suitable for use in harsh in harsh environments.
Datos técnicos
Propiedades
- Condiciones de funcionamiento
- -40 °C…+60 °C
- Condiciones de almacenamiento
- -40 °C…+85 °C
- Humedad relativa
- 0…95 % nicht kondensierend
- Método de medición
- NDIR (dual beam technology)
- Certificación
- SIL2, ATEX
- Salida de señal
- 4..20mA
- Fuente de alimentación
- 12…24 V DC
- Carcasa
- Edelstahl
- Longitud de cable estándar
- 1,5 m
- condiciones de presión
- 800...1200 mbar
Opciones
- Otras longitudes de cable por solicitud
- Certificación ATEX (opcional)
Rangos de medición
- en ppm
- in vol%
- 0…44.000ppm
- 0…4,4 % vol (100 % LEL)
- 0…50.000ppm
- 0…5 % vol
- 0…1.000.000ppm
- 0…100 % vol

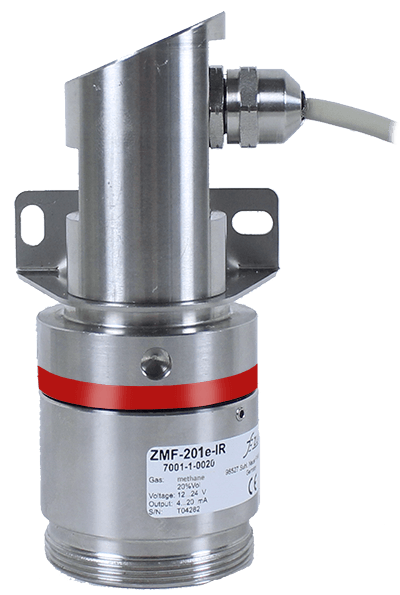

ZMF-201e-IR Configurar
Su configuración
- Designación básica
- ZMF-20
- Typ
- Temperaturbereich
- Messmethode
- Signalausgang
- Messbereich
- Ex-Zulassung
Más información del producto
The measurement of gas concentrations is essential for the protection of man and machine as well as for the monitoring of environmental and process conditions. It is not uncommon for an unintentional leakage of these gases to lead to dangerous situations. Our sensors and transmitters for gas detection support the user in optimal process control and ensure safe environmental conditions.
The detection of the concentration of gases in the air can be realized with different measuring principles. Gas detectors of the ZMF series rely on the maintenance-free and reliable NDIR measurement method. Non-dispersive infrared absorption (NDIR) uses the absorption of infrared light at different wavelengths to measure gas concentrations, depending on the gas to be measured.
Features
- maintenance-free measuring principle NDIR
- 4...20 mA signal output
- Rugged stainless steel housing
- Power supply: 12...24 V DC
- Operating conditions: -40 °C...+60 °C
- Storage conditions: -40 °C...+85 °C
- Standard cable length: 1.5 m
- Relative humidity: 0...95 % non-condensing
- SIL2 certification
- ATEX certification (on request)
- Attractive price-performance ratio
