Name: FDL400 Flow Data Logger
Brand: Fluid.iO

Flow Data Logger

Características

Familia de productos

Medición del caudal

Clase de producto

Registrador de datos de caudal

Adecuado para

Líquido

Principio de medición

Características importantes

Wall mounting or DIN rail mounting
Display of flow velocity, fill level, flow rate, flow volume
Configurable outputs

Descripción del producto

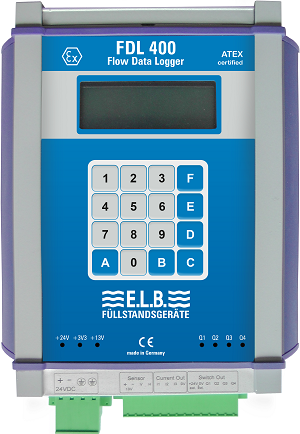

The FDL400 "Flow Data Logger 400" measuring device is suitable for measuring the flow of water and wastewater in fully or partially filled sewers or pipes of various geometries.

Datos técnicos

Propiedades

Carcasa: Aluminium

Clase de protección: IP30

Dimensiones: 197 x 153 x 37,5mm (B x H x T)

Rango de temperatura: 0 – 50°C

Tensión de alimentación: 24V DC +/-20%

Potencia consumida: 120mA – 220mA

Protección contra inversión de polaridad: ✓

Visualización: 4x20

Salidas

analog 0(4)–20mA: 3x

digital: 4x

fixed for alarm: 1x

free configurable: 3x

display of measured value

Velocidad de flujo

Nivel de llenado

flow

flow rate

Más información del producto

The evaluation is based on the flow formula Q = V x A.

Q = flow rate
V = flow velocity
A = wetted area

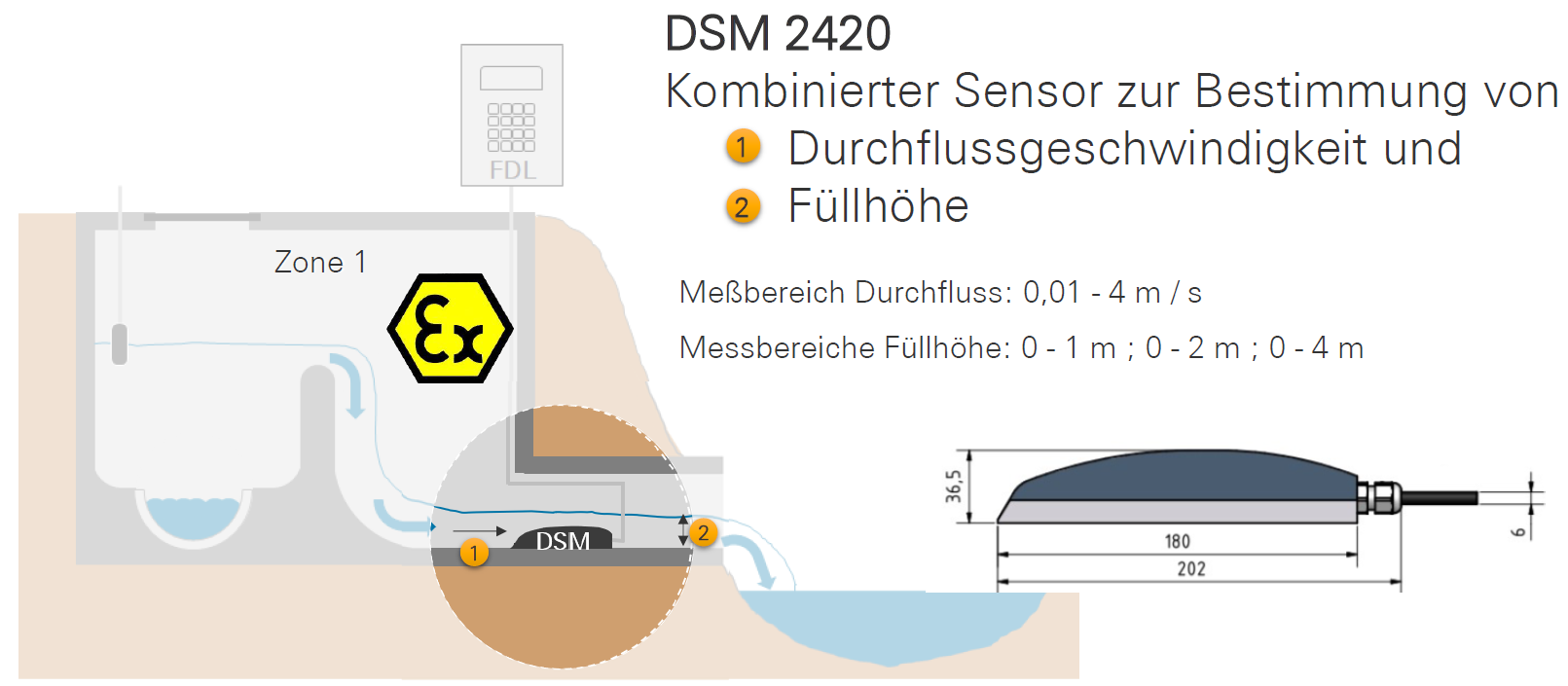

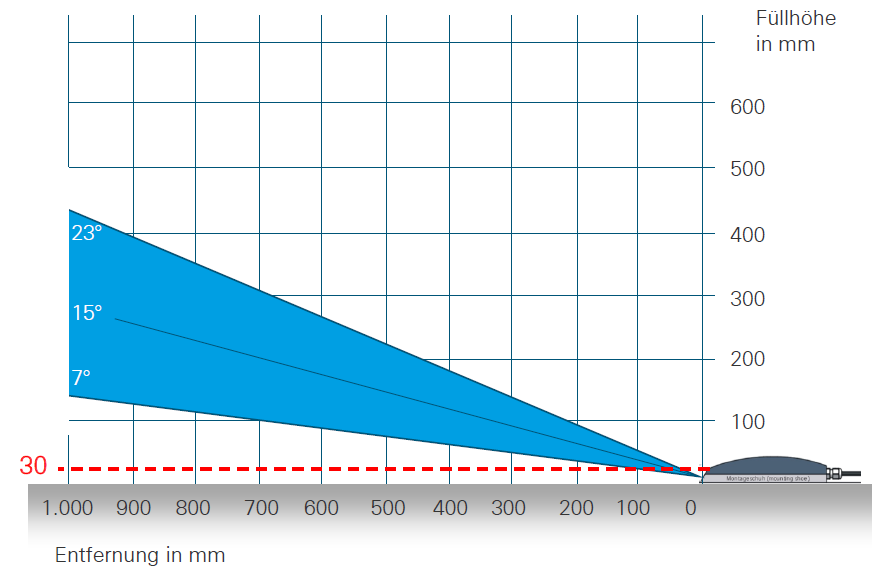

A combined measuring sensor mounted on the channel floor or wall records the flow velocity V in m/s according to the Doppler principle. The velocity data is recorded and processed in the processor via a sonic beam that radiates into the medium against the direction of flow. The integrated pressure sensor is used to record the fill level in metres; this value is in turn used in the processor to calculate the segment area in m² through which the flow passes according to a pre-programmed channel cross-section. The two multiplicands result in the sum Q in l/s

All required parameters are programmed using the 16-way keypad on the front of the device. The individual values appear in the clear 4-fold display

Flow rate
filling level
Flow rate
quantity

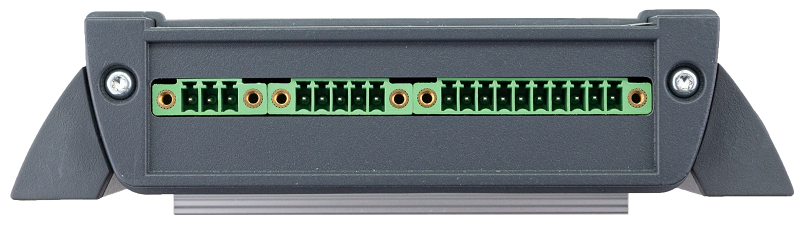

The measuring sensors are supplied with the necessary voltage by the evaluation electronics. In addition to its actual measuring function, the FDL400 measuring device also serves as a power supply unit for the approved sensors intended for this purpose. The device has 4 switching outputs.

Outputs

3 x analog 0 (4) - 20 mA / load 100Ω - 900Ω freely configurable for standard flow, extra flow, flow velocity and height.
4 x digital, optically decoupled p-transistor outputs (PNP) - 12 - 30 V / 50 mA, short-circuit proof.
1 x permanently programmed as an alarm.
3 x freely configurable as a pulse output, for standard flow, extra flow, flow velocity and height.

All outputs can be switched on and off individually.

Measurement data is stored on an SD card (Secure Digital Memory Card).

The device has a mini-USB interface (AB). This is also located on the top of the device under the flap that can be opened. This interface can be used to transfer measurement data and load updates to the operating software.
