Description

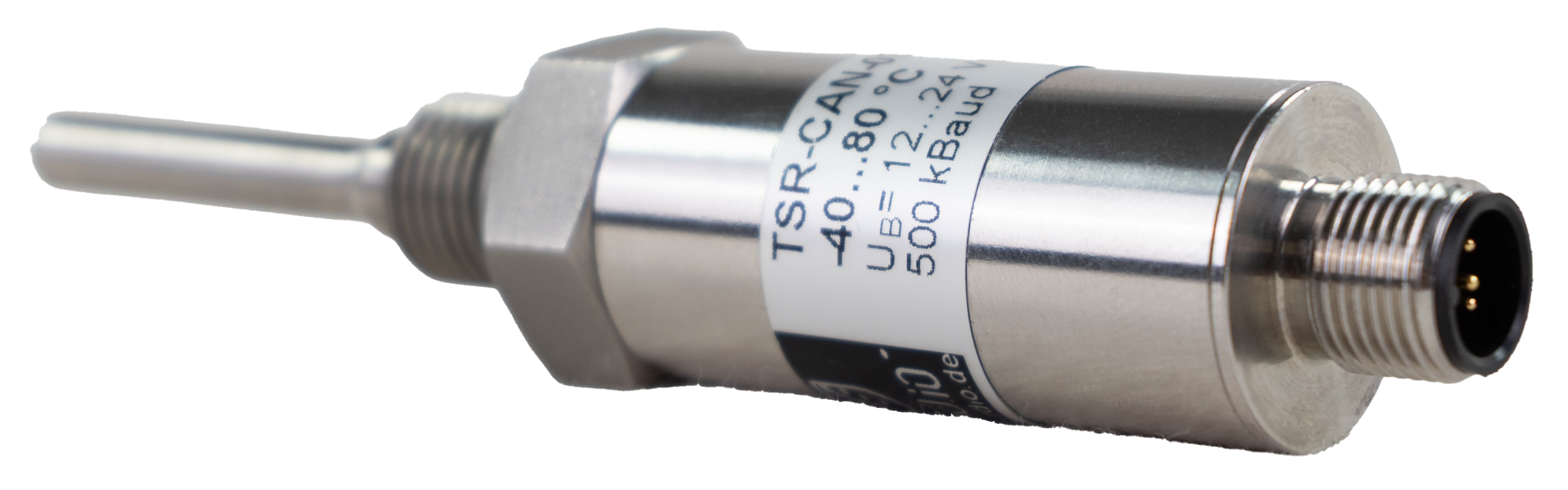

High-quality stainless steel transmitter for precise temperature measurement in all stainless steel-compatible media
Technical Data
Measurement parameters
- Measuring range
- -40…+80 °C (optional +150°C)
- deviation
- ± 0,3 K (-40…+80 °C)
- Measuring element
- Halbleiter
- measuring resolution
- 10 Bit
- measuring grid
- ab 5 ms
ElectricalConnection
- CAN protocol
- CANopen 2.0 A, nach ciA DS 404
- Physical Layer
- nach DIN 11898
- Operating voltage
- 12…17 V ±20 %
Operating conditions
- Operating temperature
- -40...+80 °C
- Storage temperature
- -40°C...+120°C
- Shock resistance
- 30g, Dauer: 14 ms bei Raumtemperatur
- Vibration resistance
- 10g bei 20 bis 1000 Hz
Further product information
Flexible adaptation of the measuring tip ensures optimum installation conditions
- Ideally suited for temperature measurement in pipelines
- Excellent long-term stability due to the absence of any mechanical adjustment elements, as well as digital storage of the calibration values
- Fast and easy modification of NodeID and baud rate using Layer Setting Service
CANopen
- minimal wiring effort
- Standardized by CAN in Automation (CiA)
- Interoperability and interchangeability
- Detection of error conditions (node guarding, emergency message, heart beat)
- Baud rates from 10 kbit/s - 500 kbit/s
- EDS files
Approvals
The device complies with the standards
- EN 50082-1
- EN 50082-2
